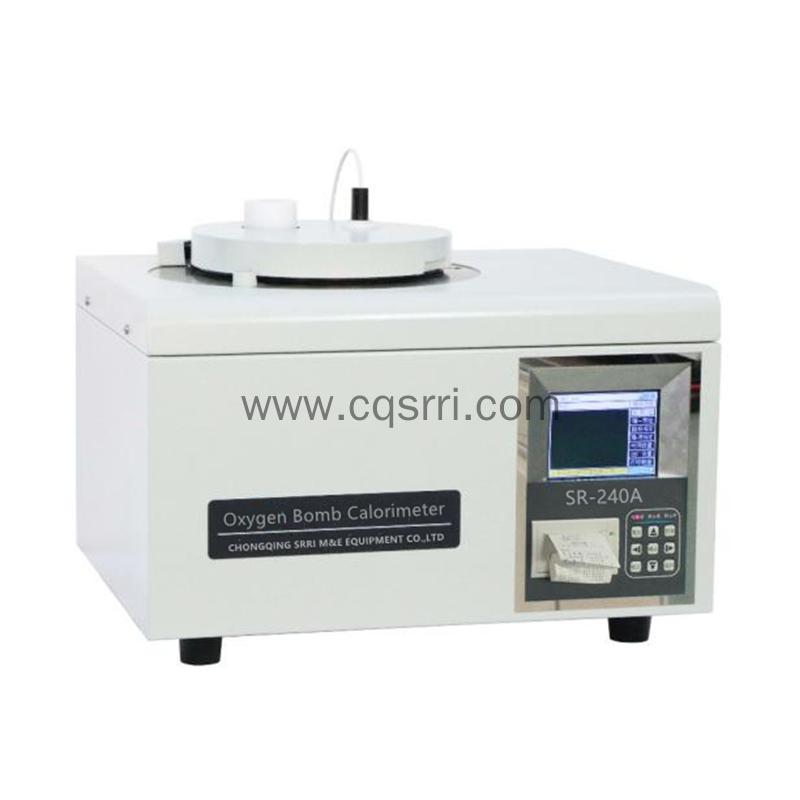

SR-240A Oxygen Bomb Calorimeter
SR-240A oxygen bomb calorimeter is designed and made as per GB/T213-2008 Test Method for Calorific Value of coal, GB/T384-1988 Test Method for Calorific Value of Petroleum Products and Calibration Regulation of China JJG672-2001 Oxygen Bomb Calorimeter and refer to the ASTM D240, ASTM D5865.
The heat capacity of the instrument is 14000 J/K～15000 J/K. It is suitable to determine calorific value of combustible materials such as petroleum products without water (gasoline, jet fuels, diesel oil and fuel oils, etc.), coal, coke and paraffin, etc.
The heat capacity of the instrument is 14000 J/K～15000 J/K. It is suitable to determine calorific value of combustible materials such as petroleum products without water (gasoline, jet fuels, diesel oil and fuel oils, etc.), coal, coke and paraffin, etc.
Details
1.Power supply: AC 220V±10%, 50 Hz
2.Total power consumption: ≤150W.
3.Heat capacity: (14000～15000) J/K
4. Resolution: 0.001 K
5. Measurement accuracy: ≤60J/g
6. Measuring range: (10～35)℃
7. Repeatability error: ≤0.2% (Grade C)
8. Pressure endurance of bomb: 20 MPa
9. Temperature measurement range: (15～28)℃
10. Relative humidity: ≤85%
11. Overall dimension: 600mm×480mm×460mm
2.Total power consumption: ≤150W.
3.Heat capacity: (14000～15000) J/K
4. Resolution: 0.001 K
5. Measurement accuracy: ≤60J/g
6. Measuring range: (10～35)℃
7. Repeatability error: ≤0.2% (Grade C)
8. Pressure endurance of bomb: 20 MPa
9. Temperature measurement range: (15～28)℃
10. Relative humidity: ≤85%
11. Overall dimension: 600mm×480mm×460mm
