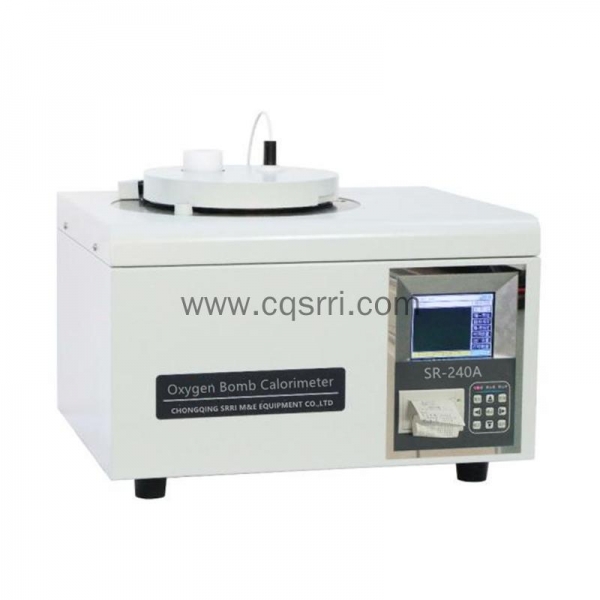

SR-240A Oxygen Bomb Calorimeter

SR-240A oxygen bomb calorimeter is designed and made as per GB/T213-2008 Test Method for Calorific Value of coal, GB/T384-1988 Test Method for Calorific Value of Petroleum Products and Calibration Regulation of China JJG672-2001 Oxygen Bomb Calorimeter and refer to the ASTM D240, ASTM D5865.
The heat capacity of the instrument is 14000 J/K～15000 J/K. It is suitable to determine calorific value of combustible materials such as petroleum products without water (gasoline, jet fuels, diesel oil and fuel oils, etc.), coal, coke and paraffin, etc.

1.Power supply: AC 220V±10%, 50 Hz
2.Total power consumption: ≤150W.
3.Heat capacity: (14000～15000) J/K
4. Resolution: 0.001 K
5. Measurement accuracy: ≤60J/g
6. Measuring range: (10～35)℃
7. Repeatability error: ≤0.2% (Grade C)
8. Pressure endurance of bomb: 20 MPa
9. Temperature measurement range: (15～28)℃
10. Relative humidity: ≤85%
11. Overall dimension: 600mm×480mm×460mm
