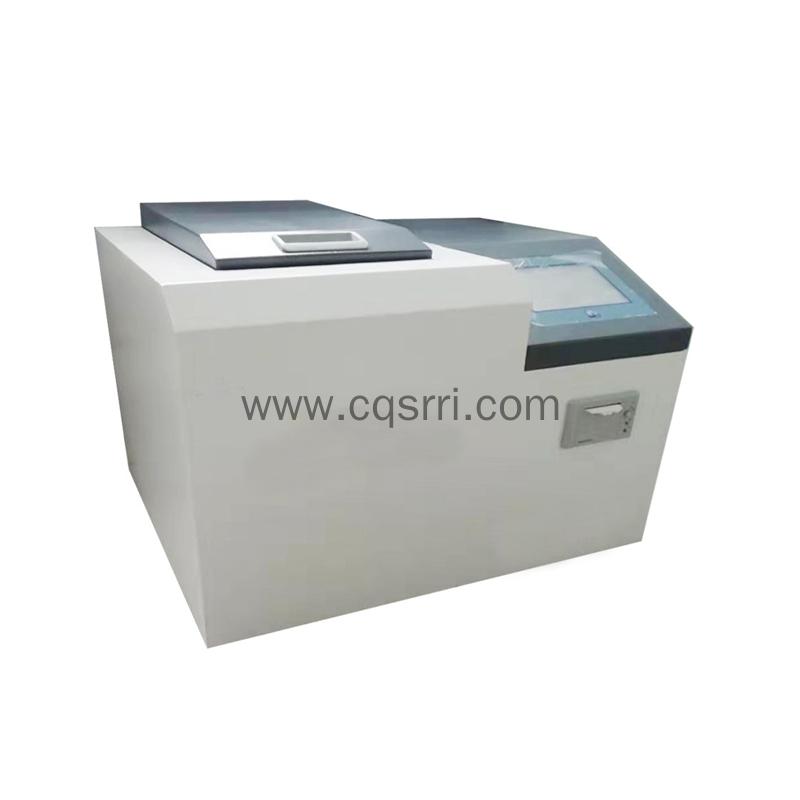

SR-240AL Fully Automatic Calorimeter

SR-240AL Fully Automatic Calorimeter

SR-240AL fully automatic calorimeter is used for the determination of calorific value of solid, liquid and other combustibles such as coal, petroleum, wood, explosives etc.
It adopts color touch monitor display with friendly user interface. The measurement process is automatically controlled to reduce human error.
Details
Heat capacity:  about 10500 J/K
Oxygen bomb capacity:  300ml.
Oxygen pressure:  2.8~3.2 MPa.
Pressure resistance: water pressure 20MPa.
Weight: 2.5kg
External dimensions: 86.2 x 181 mm.
Temperature range: 0 ~ 40 ℃
Response time: < 4 S.
Resolution: 0.0001 ℃
Linear degrees: every 5 ℃ temperature rise within the scope of < 0.08%
Temperature measurement error: every 5 ℃ temperature range accuracy of ±0.003 ℃
Power supply voltage: AC220V ±10%.
Wet degree: ≤80%
Power: 30W
Ignition voltage: AC24V.
Ignition time: 5S
