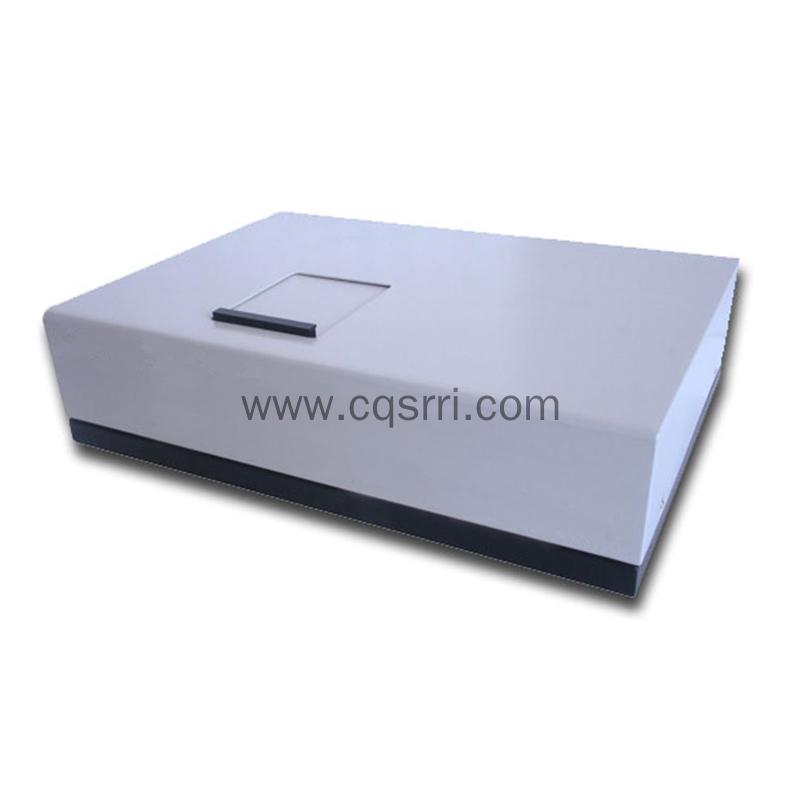

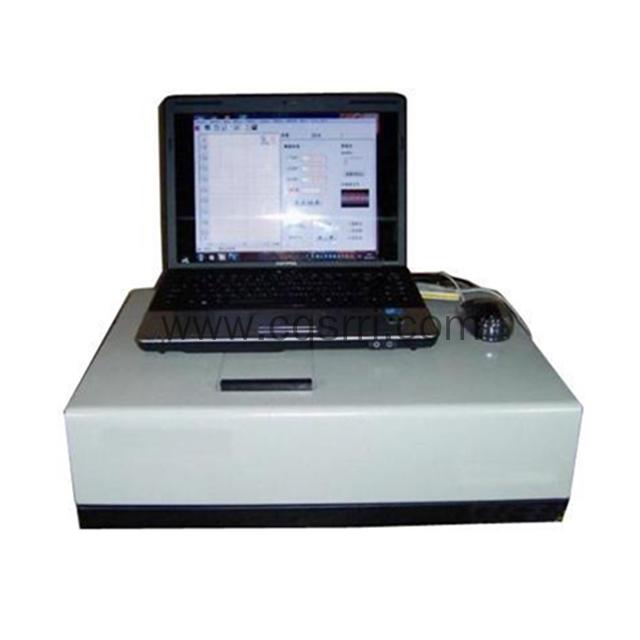

SR-IF637 Infrared Oil Content Analyzer
SR-IF637 Infrared Oil Content Analyzer
SR-IF637 Infrared Oil Content Analyzer

SR-IF637 Infrared Oil Content Analyzer

This infrared oil content measuring instrument adopts infrared spectrophotometry to scan the sample for monochromatic spectrum. It can display and print the wave position of the sample spectrum and absorption peak, and can measure the oil concentration in the sample. It is applied for the determination of surface water, groundwater, domestic sewage, industrial wastewater, petroleum in the soil and animal and vegetable oil content. And it is widely applied in environmental monitoring systems, petrochemicals, sewage treatment plants, thermal power plants, steel enterprises, scientific research and teaching in universities, agricultural environment, automobile manufacturing, catering industry, soot emission measurement, marine environmental monitoring, environmental research, etc. It meets with national standards: "HJ637-2018 Water quality Determination of petroleum and animal and vegetable oils by infrared spectrophotometry".


Details

Basic measurement range

0.001~100mg/L ( 4cm cuvette)

Detection limit

<0.12mg/L (extraction agent, Direct measurement)

<0.0012mg/L (Oil concentration in water samples)

Measurable concentration

≤640000mg/L(Dilution measurement);≤100% oil

Testing accuracy

±0.5 (<10 mg/L)

±2% (10~80mg/L)

Zerostability

±1%/24 hours

Repeatability

Relative standard deviation RSD≤1%

Linear

R>0.999

Wave number range

3400cm-1~2400cm-1/85000px-1~60000px-1 (2941nm~4167nm)

Wave number accuracy

2cm-1

Wavenumber repeatability

2cm-1

Absorbance range

0.0000~2.000AU

Baseline drift

Absorbance<0.001AU/60min

Sample analysis time

Full spectrum scan:40 seconds or so;Non-dispersive method: 2 seconds

Dimensions

540mm×360mm×150mm

Weight

15Kg

Power supply

220V/50Hz ±10%

Environmental requirements

5℃~35℃;20%~80%RH,No condensation; no strong magnetic interference
