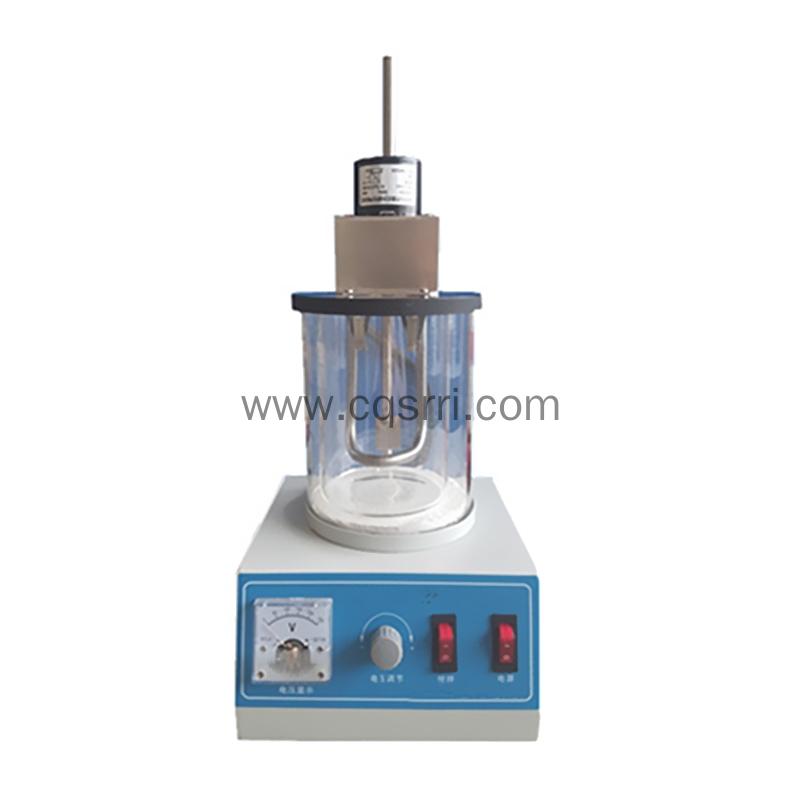

SR-566 Lubricating Grease Dropping Point Tester

1. Working power: AC (220 ± 10%) V, 50Hz.
2. Oil bath: beaker of 600ml.
3. Grease cup: made of chrome-plated brass, inner dia. Φ9.92mm, drip hole Φ2.8mm, cup height 12mm.
4. Test tube: with heat-resistant borosilicate glass test tube, inner diameter Φ11.1 to Φ12.7mm, on the circumference of the outer 19mm from the bottom there are three grooves for supporting the grease cup.
5. Thermometer: temperature measurement range -5~300 °C, graduation value 1 °C, immersion depth 76 mm, and total length 390 mm.
6. Heater: tubular, power 800W.
7. Stirring motor speed: 60 rpm.
8. Ambient temperature: (-10~+40) °C;
9. Relative humidity: ≤ 85%;
10. Power consumption: < 900W.
11. Dimensions: 350×180×410mm.
