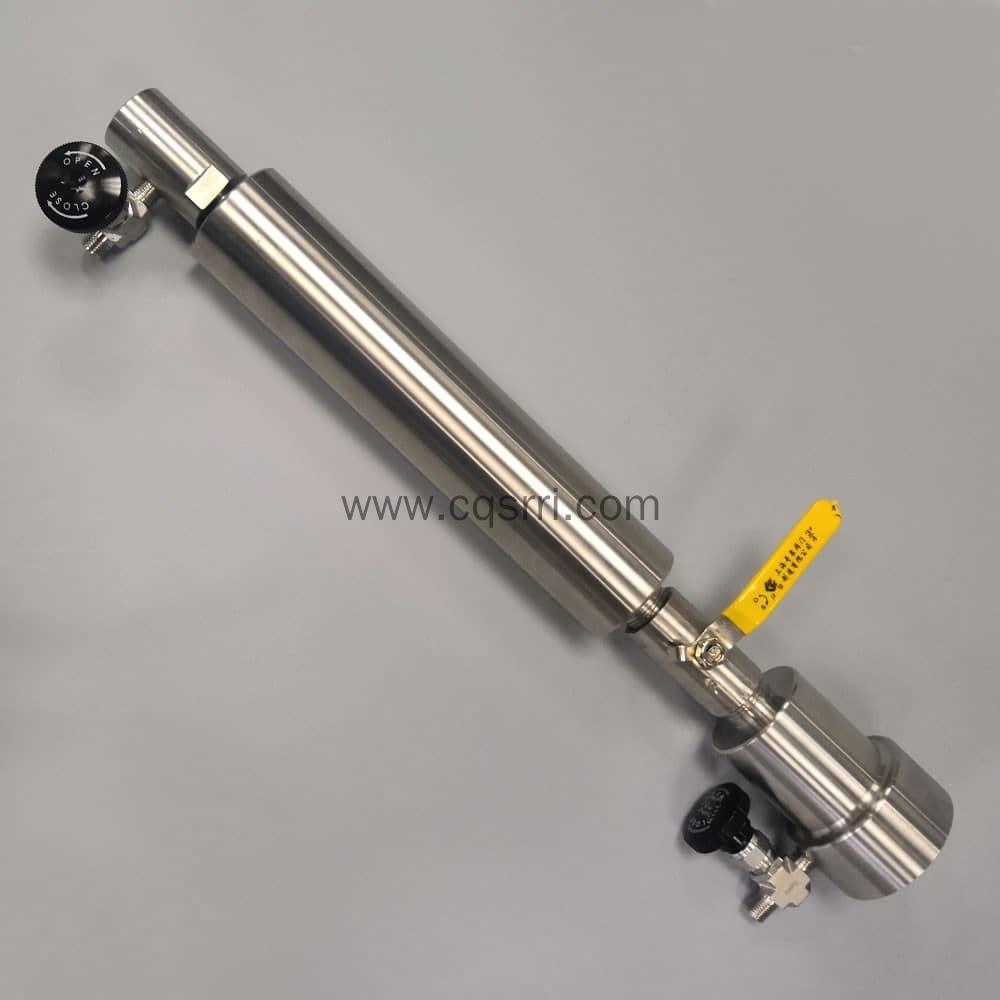

SR-TB1267 LPG Vapor Pressure Test Bomb ASTM D1267

This LPG vapor pressure test bomb complies to ASTM D1267 Test Method for Gauge Vapor Pressure of Liquefied Petroleum (LP) Gases (LP-Gas Method) , ASTM D323, ISO 3007 and GB/T 6602. It is applied for the determination of gauge vapor pressure of LPG at temperatures of 37.8ºC up to and including a test temperature of 70ºC.

Items	Specification
Volume Ratio of Upper and Lower Chambers	1:4 (3,95 – 4,05)
Pressure Gauge Thread Screw	М20 х 1,5
Thread Screw of Inlet and Outlet Valves	1/4NPT-M
Thread Screw of Upper and Lower Chambers	½”
Inner diameter of Body	51 ± 3 mm
The Length of Body	254 ± 3 mm
Weight	Around 4 kg
Material Valve	Stainless Steel 316
Material Body	Stainless Steel 304
Working Pressure of Valve	3000 psi
