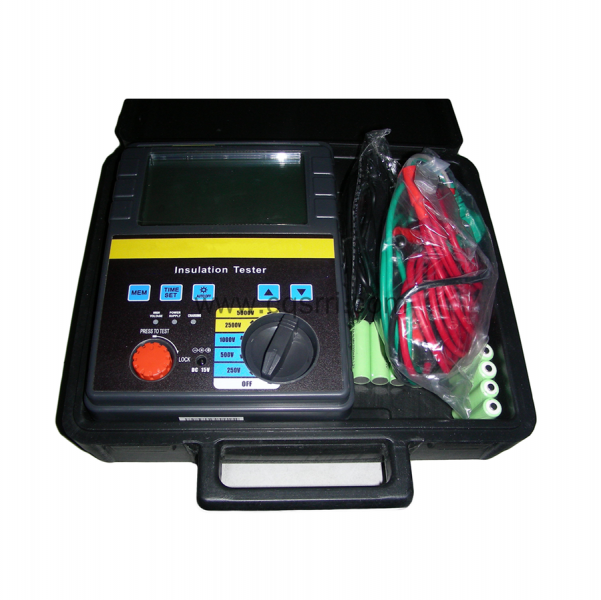

SR-IR2305 /2306 Insulating Resistance Tester

SR-IR2305 /2306 Insulating Resistance Tester

This digital Insulation resistance tester embedded real-time industrial microcomputer operating system, ultra-thin wire-shaped sheets header with the perfect combination of dot matrix liquid crystal display, the instrument is with a variety of voltage output level (250V,500V,1000V,2500V,5000V,10000V), high capacity, strong anti-interference, the pointer and digital synchronous display, AC-DC dual-use, simple operation, automatic calculation of various insulation index (absorption ratio, polarization index), all measured characteristics with the anti-power-down function . It is suitable for measuring high capacity transformers, transformers, generators, high voltage electric motors, power capacitors, power cables, surge arresters and other ideal insulation resistance test equipment.

Model	2305
Rated Voltage	250V	500V	1000V	2500V		5000V
Measuring Range	0.0～99.9MΩ 100～999MΩ 1.00～10.0GΩ	0.0～99.9MΩ 100～999MΩ 1.00～9.99GΩ 10.0～20.0GΩ	0.0～99.9MΩ 100～999MΩ 1.00～9.99GΩ 10.0～40.0GΩ	0.0～99.9MΩ 100～999MΩ 1.00～9.99GΩ 10.0～100GΩ		0.0～99.9MΩ 100～999MΩ 1.00～9.99GΩ 10.0～99.9GΩ 100～200GΩ
Open circuit Voltage	DC 250V +20%, -0%	DC 500V +20%, -0%	DC 1000V +20%, -0%	DC 2500V +20%, -0%		DC 5000V +20%, -0%
Short-circuit Current	Approx 3.3mA
Accuracy	±5%±3dgt				100GΩ or more ±20%

Model	2306
Rated Voltage	5000V	10000V
Measuring Range	0.0～99.9MΩ 100～999MΩ 1.00～9.99GΩ 10.0～99.9GΩ 100～200GΩ	0.0～99.9MΩ 100～999MΩ 1.00～9.99GΩ 10.0～99.9GΩ 100～400GΩ
Open circuit Voltage	DC 5000V +20%, -0%	DC 10000V +10%, -0%
Short-circuit Current	Approx 3.3mA
Accuracy	±5%±3dgt	100GΩor more ±20%
