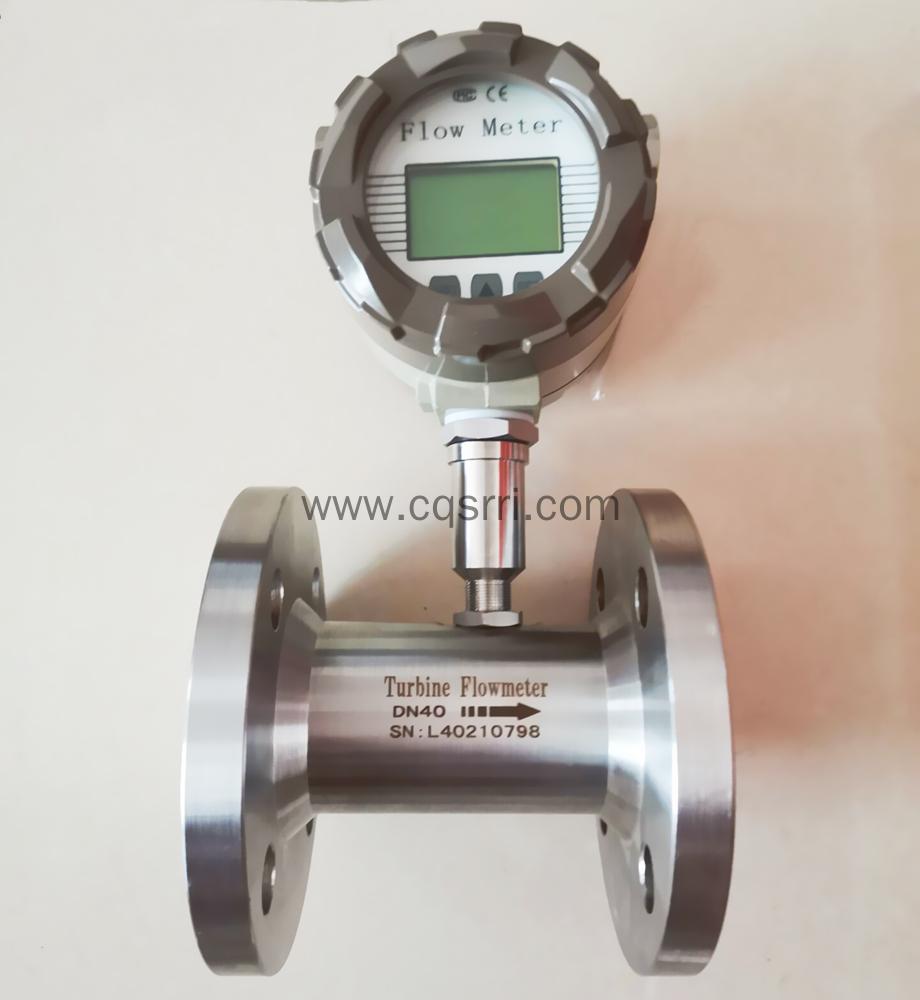

Turbine Flow Meter
SRLWGY turbine flow meter is based on the principle of torque balance. It has the characteristics of simple structure, light weight, high precision, good repeatability, responsiveness, easy installation and maintenance, etc. It is widely used in petroleum, chemical, metallurgy, water supply, paper making and other industries. It is an ideal instrument for flow measurement and energy saving.
If it is matched with a display instrument with special functions, it can also perform quantitative control and over-alarm alarm.
If it is matched with a display instrument with special functions, it can also perform quantitative control and over-alarm alarm.
Details
Material: Stainless Steel
DN range (mm): DN8-DN500
Output: pulse/current4-20Am/RS-485/Hart
Accuracy: 0.2%, 0.5%, 1%
Medium: liquid
Flow range (mm): 0.25-4000
Power supply: 12+-10% VAC / 24+-10% VAC / 24VDC
Medium temperature (centigrade): -20-120
Environment temperature (centigrade): -20-50
Atmospheric pressure: 86-106KPa
Nominal Pressure: 1.6 – 42 MPa
Anti-Explosion Grade: IaIICT4, dIIBT4
Connection type: flange / screw thread / clamping band
DN range (mm): DN8-DN500
Output: pulse/current4-20Am/RS-485/Hart
Accuracy: 0.2%, 0.5%, 1%
Medium: liquid
Flow range (mm): 0.25-4000
Power supply: 12+-10% VAC / 24+-10% VAC / 24VDC
Medium temperature (centigrade): -20-120
Environment temperature (centigrade): -20-50
Atmospheric pressure: 86-106KPa
Nominal Pressure: 1.6 – 42 MPa
Anti-Explosion Grade: IaIICT4, dIIBT4
Connection type: flange / screw thread / clamping band
