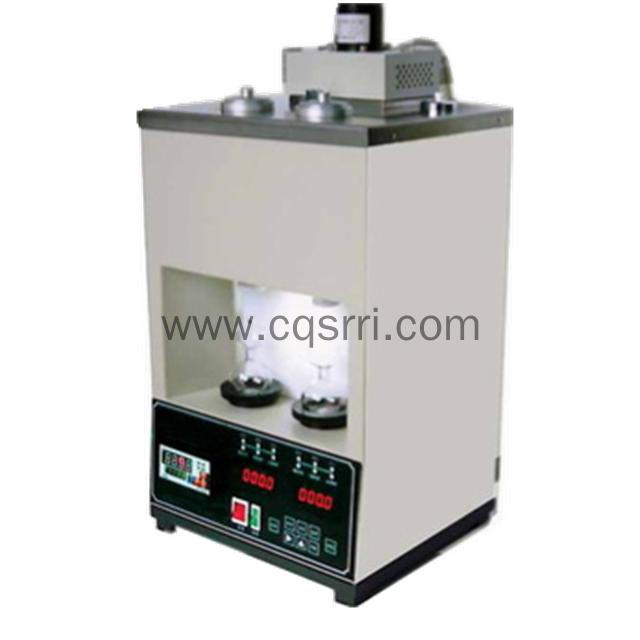

SR-88C Asphalt Saybolt Viscosity Tester

SR-88C Asphalt Saybolt Viscosity Tester

This instrument is designed and made as per T 0623 and ASTM D88 Bitumen Saybolt Viscosity Test (Saybolt Viscometer Method) in the JTJ052 Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering. It is applied to determine the Saybolt viscosity of bitumen and bituminous mixtures under a constant temperature as per T0623.
Details
1.Power supply: AC（220±10%）V  50Hz
2. Instrument structure: Desk type
3. Working mode: Double lines，parallel test
4. Receiving flask: 60±0.05 ml
5. Heating power of bath: 1000W
6. Working temperature of bath: Room temp.∼240.0℃
7. Temperature control accuracy: ±0.1℃
8. Timing range: 0.0s∼999.9s
9. Timing accuracy: ±0.1s
10. Ambient temperature: ≤35℃
11. Relative humidity: ≤85%
12. Overall dimension: 360mm×360mm×790mm
