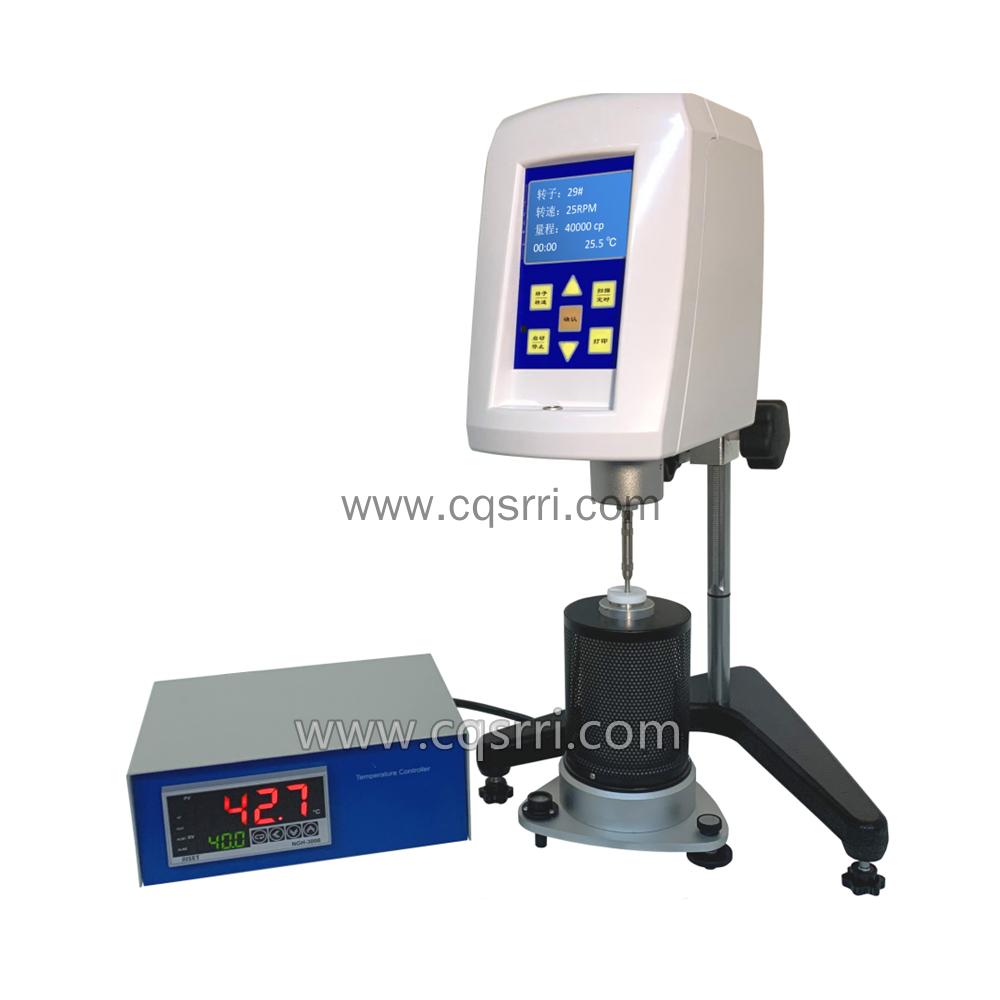

SR-2196F Asphalt High Temperature Brookfield Rotational Viscometer

SR-2196F Asphalt High Temperature Brookfield Rotational Viscometer

SR-2196F Brookfield rotational viscometer (high temperature viscometer) adopts coaxial center structure and uses small amount sample adapter. The amount of sample required for each measurement is very small, and the temperature is controlled quickly and accurately. The full scale and the linearity of each block are all calibrated through the PC interface and calibrated with standard samples of different viscosities to ensure that the instrument has high accuracy and repeatability. It has wide measurement range, suitable for testing different high temperature melting materials such as paraffin wax, polyethylene wax, rosin, hot melt adhesive and asphalt etc.
Details

Model

SR-2196F(RV)

SR-2196F(HA)

SR-2196F(HB)

Display

LCD

Speed(r/min)

0.5/1/2/2.5/4/5/10/15/20/25/30/40/50/60/70/80/90/100, total 18 speeds

Rotor

21,27,28,29 (standard configuration)

Measuring range

mPa.s)

50 - 2M

21rotor:50-100K

27rotor:250-500K

28rotor:500-1M

29rotor:1K-2M

100 – 4M

21rotor:100-200K

27rotor:500-1M

28rotor:1K-2M

29rotor:2K-4M

400 – 16M

21rotor:400-8M

27rotor:2K-4M

28rotor:4K-8M

29rotor:8K-16M

Note: K = 1,000;   M=1,000,000

Test error

±3%  (Newtonian liquid)

Repetitive error

±1.5%(Newtonian liquid)

Temperature control range

Room temperature plus 10℃-250℃  (300℃ optional)

Temperature control accuracy

0.1℃

Print interface

Available
