SR-SP752N Plus / SR-SP721N / SP722N / VIS Spectrophotometer

SR-SP752N Plus / SR-SP721N / SP722N / VIS Spectrophotometer

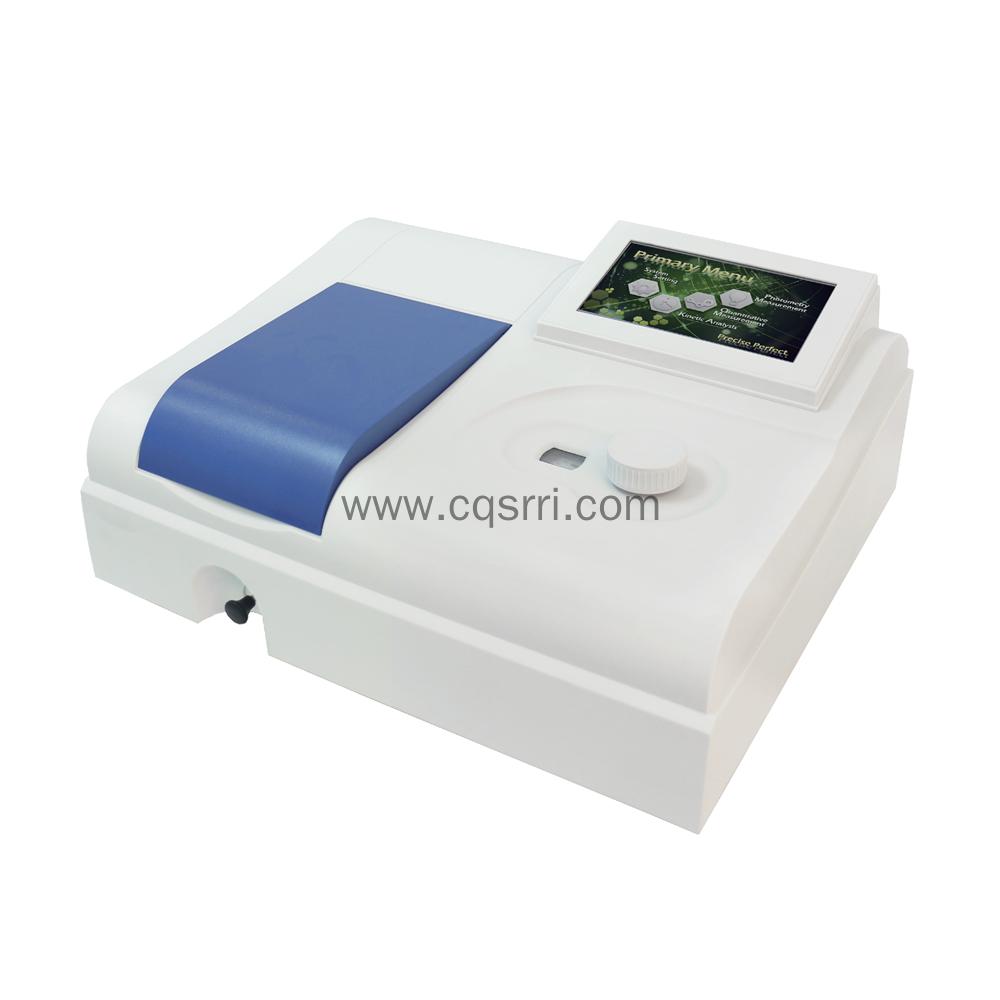

SR-SP722N VIS spectrophotometer has the holographic blazed grating monochromator, with the advantages of high wavelength accuracy, good monochromaticity and low stray light. It adopts unique optical system and low noise circuit design, with excellent reliability and stability. It meets the application needs of daily analysis to scientific research.
Details

Model

SP752N Plus

SP722N

SP721N

Photometry

Single Beam

Monochromator Type

Czerny-Turner

Focal Length

160mm

Grating

1200 lines/mm

Detector

Silicon Photocell

Wavelength Setting

Manual Turn Knob

Wavelength Range

200-1000nm

325-1000nm

340-1000nm

Wavelength Accuracy

±2nm

Wavelength Repeatability

≤1nm

Spectrum Bandwidth

2nm

5nm

Stray Light

≤0.1%T( at 220nm NaI, 360nm NaNo2 )

≤0.1( at 360nm NaNo2 )



Photometric Range

0-100.0%T

0-1.999A

0-1999C

Photometric Accuracy

±0.5%T

Photometric Repeatability

≤0.2%T

Noise

100%(T)noise≤0.3%(T) , 0%(T)noise≤0.2%(T)

Cuvette Holder Size

10mm

Power

AC220V±22V 50Hz±1Hz,120W

AC220V±22V 50Hz±1Hz,80W
