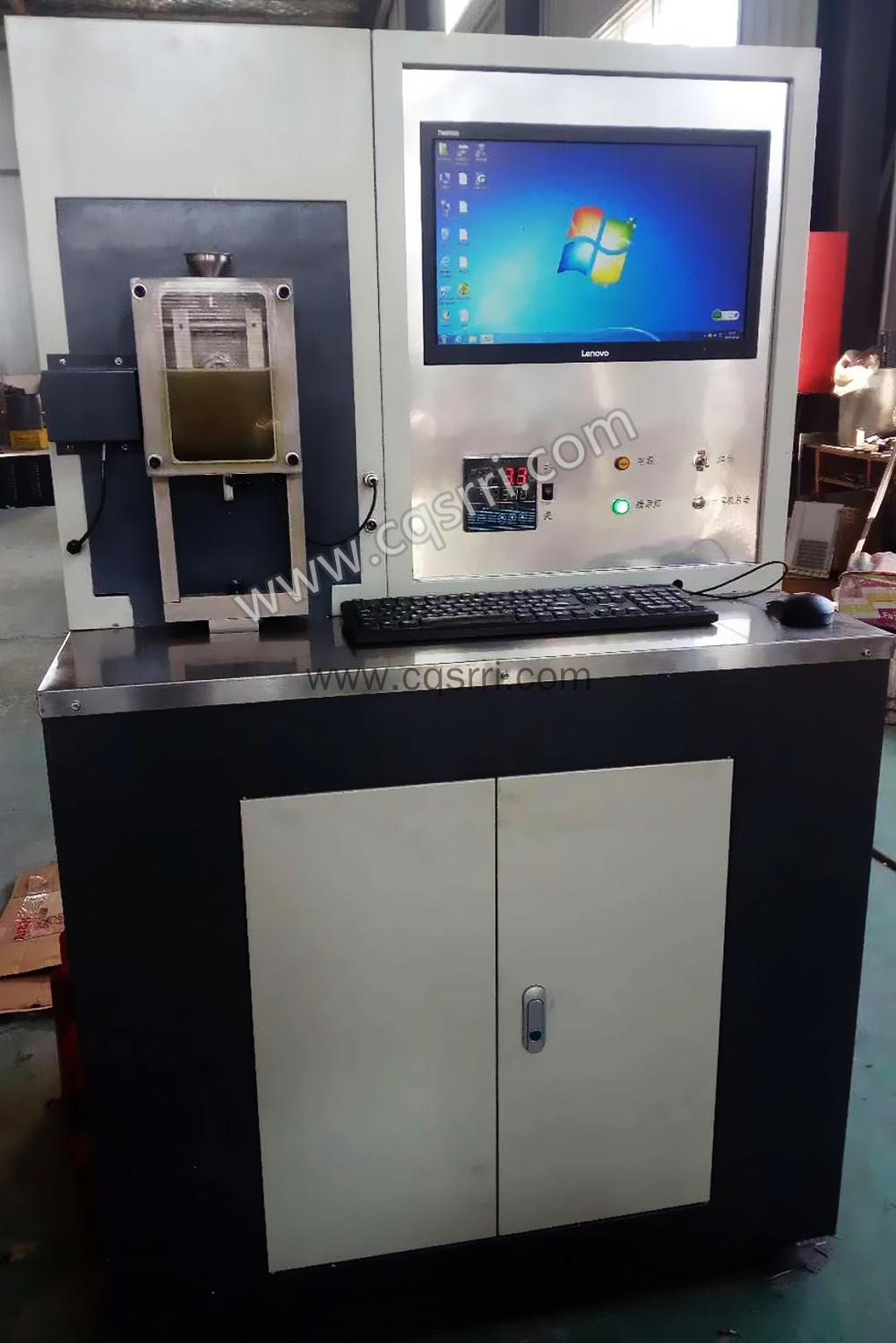

SR-2509 Lubricating Grease Load-Carrying Capacity Tester (Timken Method)

SR-2509 Lubricating Grease Load-Carrying Capacity Tester (Timken Method)

SR-2509 lubricating grease ring block friction and wear testing machine, also known as Timken testing machine, measures the load-carrying capacity of various lubricants (lubricating oil, grease and solid lubricating film). The OK value is in line with the standard SHT0203-1992 Standard Test Method for Measurement of Load-Carrying Capacity of Lubricating Grease (Timken Method); the friction and wear performance of the sample is tested by means of linear contact sliding friction.
Details

Item

Specifications

Max test force

3000N

Test force accuracy

±1%

Max friction

300N

Friction accuracy

±3%

Spindle speed regulation range

100-3000r/min

200-6000r/min (optional)

Spindle speed error

±2%

Spindle revolutions display range

0-9999999

Time display range

0-9999s或min

Test oil temperature

Room temperature-100℃ (HX-PIDSelf-setting temperature control system)

Temperature control accuracy

±2℃

Standard sample for testing

Ring φ49.22×13.06mm,

Sample block 12.32×12.32×19.05

Dimension

100×70×147cm

Net weight

450kg
