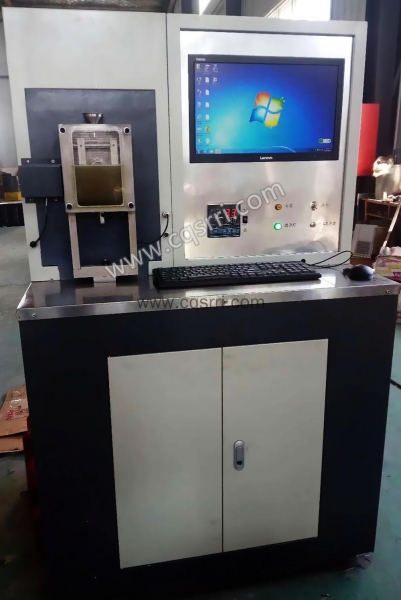

SR-2509 Lubricating Grease Load-Carrying Capacity Tester (Timken Method)

SR-2509 lubricating grease ring block friction and wear testing machine, also known as Timken testing machine, measures the load-carrying capacity of various lubricants (lubricating oil, grease and solid lubricating film). The OK value is in line with the standard SHT0203-1992 Standard Test Method for Measurement of Load-Carrying Capacity of Lubricating Grease (Timken Method); the friction and wear performance of the sample is tested by means of linear contact sliding friction.

Item	Specifications
Max test force	3000N
Test force accuracy	±1%
Max friction	300N
Friction accuracy	±3%
Spindle speed regulation range	100-3000r/min
Spindle speed regulation range	200-6000r/min (optional)
Spindle speed error	±2%
Spindle revolutions display range	0-9999999
Time display range	0-9999s或min
Test oil temperature	Room temperature-100℃ (HX-PIDSelf-setting temperature control system)
Temperature control accuracy	±2℃
Standard sample for testing	Ring φ49.22×13.06mm, Sample block 12.32×12.32×19.05
Dimension	100×70×147cm
Net weight	450kg
