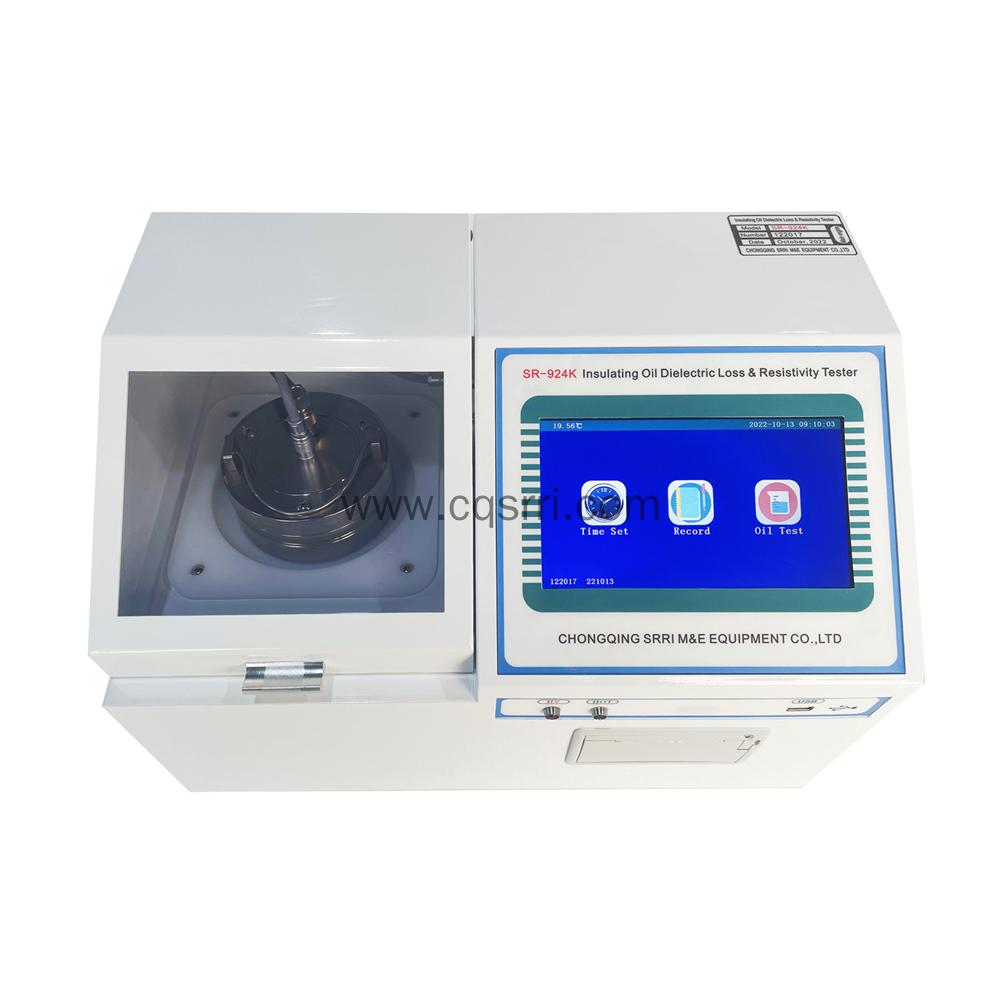

SR-924K Insulating Oil Dielectric Dissipation Factor & Electrical Resistivity Tester

1

Working conditions

-15℃∽40℃; RH＜80%

2

Power supply

AC 220V±10%; No limit on frequency

3

AC high voltage output

1000V∽2500V ±2%; Interval 200V; 50VA

4

DC high voltage output

500V ±2%

5

Temperature control induction furnace

Max power 500W

6

Temperature control range

<110℃

7

Temperature control error

±0.5℃

8

Temperature test resolution

0.1℃

9

Temperature control time

Room temperature to 90℃  <20min

10

Measuring range

tgδC:

xRx:

No limit

15PF-300PF  10M-10T

11

Resolution

△ tgδ:

△ Cx:

△ Rx :

0.001%

0.01pF

0.01

12

Accuracy

△ tgδ:

△ Cx:

△ Rx:

±(reading*0.5%+0.020%)

±(reading*0.5%+0.5PF)

±reading*10%

13

Relative permittivity

εr

Automated calculated according to Cx, with the same accuracy as Cx

14

Volume resistivity

ρ

Automatically calculated according to Rx, with the same accuracy as Rx

15

Dimensions

450（L）×310（W）×360（H）mm

16

Weight

18Kg
