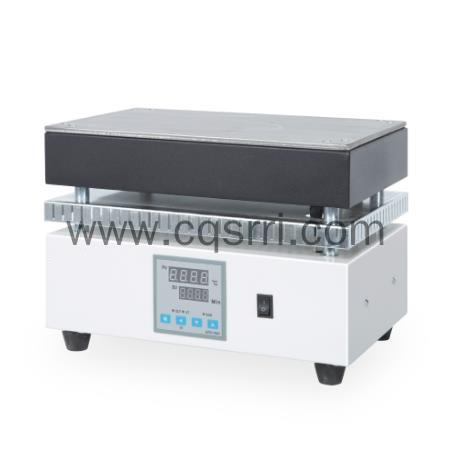

SRHP-AB Stainless Steel Electric Heating Plate

SRHP series stainless steel electric heating plates adopts electric heating alloy wire as heating material, asbestos heat insulation board as insulating material, and the outer layer is covered with thermal conductive plate of stainless steel etc. This heater plate is applied for baking, drying and other temperature tests of chemical analysis, physical measurement, heat treatment and other items in laboratories of industrial and mining enterprises, health institutions, biochemical, scientific research and other units.

Model	SRHP-XAB	SRHP-1AB	SRHP-2AB	SRHP-3AB
Power supply	AC220V±10/50Hz
Total power (KW)	1.2	1.8	2.5	3.6
Display mode	LED nixie tube
Temperature control (℃)	80-400
Temperature control accuracy (℃)	±1
Temperature uniformity (%)	5
Heating size (mm)	300×200	400×280	450×350	600×400
Plate material	201 stainless steel
Plate thickness (mm)	8
Bearing	50KG
Net weight	9	13	18	30
Product size (L×W×H mm)	300×200×210	400×280×210	450×350×210	600×400×210
