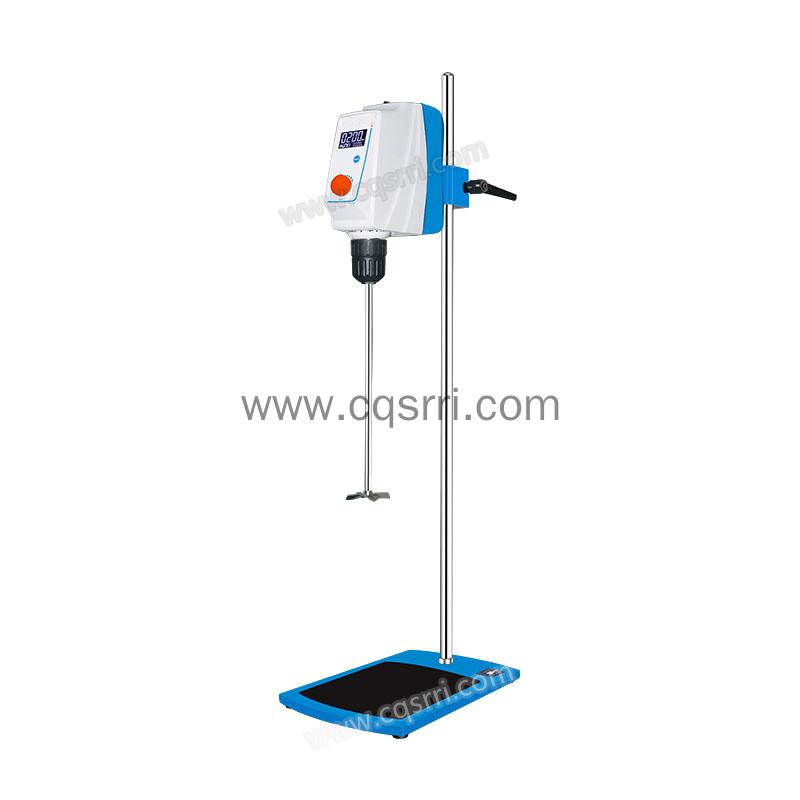

SR-OES50 Overhead Top Mounted Electric Stirrer

SR-OES50 Overhead Top Mounted Electric Stirrer

SR-OES LCD electric mixer adopts numerically controlled stepless speed regulator. It adopts self-locking chuck, and  independently developed square lifting clamp. It has large LCD display with adjustable speed and time and is used for mixing solid-liquid, liquid-liquid or medium and high viscosity samples.
Details

Maxi mixing volume (L)

20

Range of rotation (rpm)

30-2200

Speed display

LCD

Timing range (min)

1~9999

Mixing time setting

Available

Speed display resolution (rpm)

±1

Speed memory

Available

Speed mode

Coarse and fine adjustment

Maximum torque(N.cm)

40

Maximum viscosity (Pas)

10000

Stirring paddle fixing method

Self-locking chuck

Drill chuck clamping diameter range (mm)

0.5-10

Security

Chuck protective cover, safety buckle, non-slip mat

Overload protection

Display failure and stop automatically

Motor protection

Display failure and stop automatically

Motor input power (W)

60

Motor output power (W)

50

Voltage (VAC)

100-240



Frequency (Hz)

50/60

Power (W)

70

Protection method

IP42

Allowable ambient temperature (°C)

5-40

Permissible environmental humidity (%)

80

RS232 interface

Available

Dimensions (DxWxH) (mm)

160 x 80 x 180

Weight (kg)

2.5
