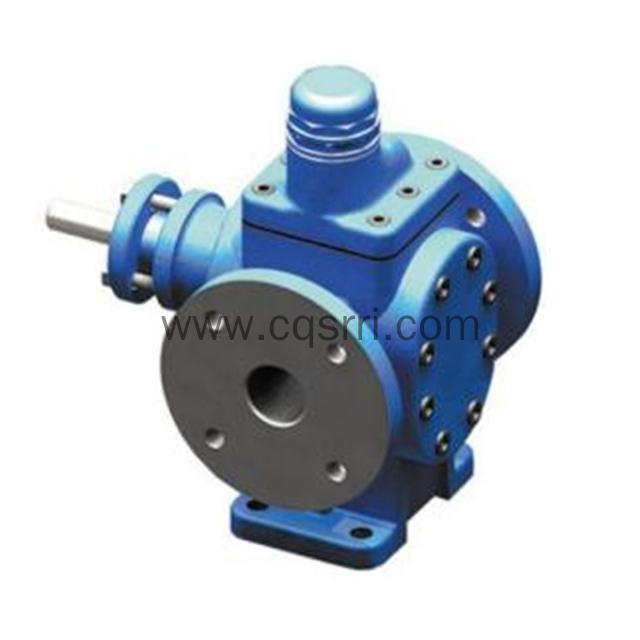

SR-YCB Circular Gear Pump

SR-YCB series gear pump is applied to deliver non-corrosive lubricating-oil or other liquid with similar performance without solid particles and fibre, with viscosity of 5x10-6 ~ 1.5x10-3m2/s(5-1500cSt) and also applied in hydraulic system. Reducing the rotation speed of pump,the viscosity of delivered medium can be up to 5x104cSt.

Model	Capacity Q m3/h	Speed n r/min	Exhaust Pressure P MPa	NPSHR m	Efficiency ŋ %	Motor
Model	Capacity Q m3/h	Speed n r/min	Exhaust Pressure P MPa	NPSHR m	Efficiency ŋ %	Frequency Hz	Power kW	Model
	0.6	910				50	0.75	Y90S-6
YCB0.6-0.6	1.0	1390	0.6	5.5	60	50	0.75	Y80L2-4
YCB0.6-0.6	0.7	1130				60	0.75	Y90S-6
	1.2	1710				60	0.75	Y80L2-4
	0.6	910				50	1.1	Y90L-6
YCB0.6-1.6	1.0	1400	1.6	7.0	70	50	1.5	Y90L-4
YCB0.6-1.6	().7	1130				60	1.1	Y90L-6
	1.2	1710				60	1.1	Y90S-4
	1.6	910				50	0.75	Y90S-6
YCB1.6-0.6	2.5	1400				50	1.1	Y90S-4
YCB1.6-0.6	1.9	1130				60	1.1	Y90L-6
	3.0	1710				60	1.5	Y90L-4
	1.6	940				50	2.2	Y112M-6
YCB1.6-1.6	2.5	1440				50	4	Y112M-4
YCB1.6-1.6	1.9	1150				60	2.2	Y112M-6
	3.0	1750				60	4	Y112M-4
	3.3	940				50	1.5	YI00L-6
YCB3.3-0.6	5.0	1420				50	2.2	YI00L1-4
YCB3.3-0.6	4.0	1150	0.6	5.0	60	60	1.5	YI00L-6
	6.0	1730				60	2.2	YI00L1-4
	3.3	960				50	5.5	Y132M2-6
	5.0	1440				50	7.5	Y132M-4
YCB3.3-1.6	4.0	1170	1.6	7.0	72	60	4	Y132M1-6
	6.0	1750				60	7.5	Y132M-4
	4.0	940				50	1.5	YI00L-6
	6.0	1420				50	2.2	YI00L1-4
YCB4-0.6	4.8	1150	0.6	5.0	60	60	2.2	Y112M-6
	7.2	1730				60	3	Y100L2-4
	4.0	960				50	5.5	Y132M2-6
	6.0	1440				50	7.5	Y132M-4
YCB4-1.6	4.8	1170	1.6	7.0	72	60	5.5	Y132M-6
	7.2	1750				60	7.5	Y132M-4
	8.0	960				50	3	Y132S-6
	12.0	1440				50	5.5	Y132S-4
YCB8-0.6	9.6	1170	0.6	5.0	61	60	4	Y132M1-6
	14.4	1750				60	5.5	Y132S-4
	8.0	970				50	11	Y160L-6
	12.0	1460				50	15	Y160L-4
YCB8-1.6	9.6	1170	1.6	7.0	75	60	11	Y160L-6
	14.4	1760				60	15	Y160L-4
	10.0	960				50	4	Y132M1-6
	15.0	1440				50	5.5	Y132S-4
YCB10-0.6	12.0	1170	0.6	5.0	62	60	5.5	Y132M2-6
	18.0	1750				60	7.5	Y132M-4
	10.0	970				50	11	Y160L-6
	15.0	1470				50	15	Y160L-4
YCB10-1.6	12.0	1170	1.6	7.0	76	60	11	Y160L-6
	18.0	1770				60	18.5	Y180M-4
YCB20-0.6	20.0	970	0.6	5.0	68	50	7.5	Y160M-6
	24.0	1170				60	7.5	Y160M-6
YCB25-0.6	25.0	970	0.6	5.5	69	50	11	Y160L-6
	30.0	1170				60	11	Y160L-6
	30.0	970				50	11	Y160L-6
YCB30-0.6	36.0	1170	0.6	5.5	65	60	11	Y160L-6
	40.0	970				50	15	Y180L-6
YCB40-0.6	48.0	1180	0.6	5.5	66	60	15	Y180L-6
	50.0	970				50	22	Y200L2-6
YCB50-0.6	60.0	1180	0.6	5.5	66	60	22	Y200L2-6
	60.0	970				50	22	Y200L2-6
YCB60-0.6	73.0	1180	0.6	5.5	65	60	30	Y225M-6
	80.()	970				50	30	Y225M-6
YCB80-0.6	97.0	1180	0.6	5.5	65	60	30	Y225M-6
