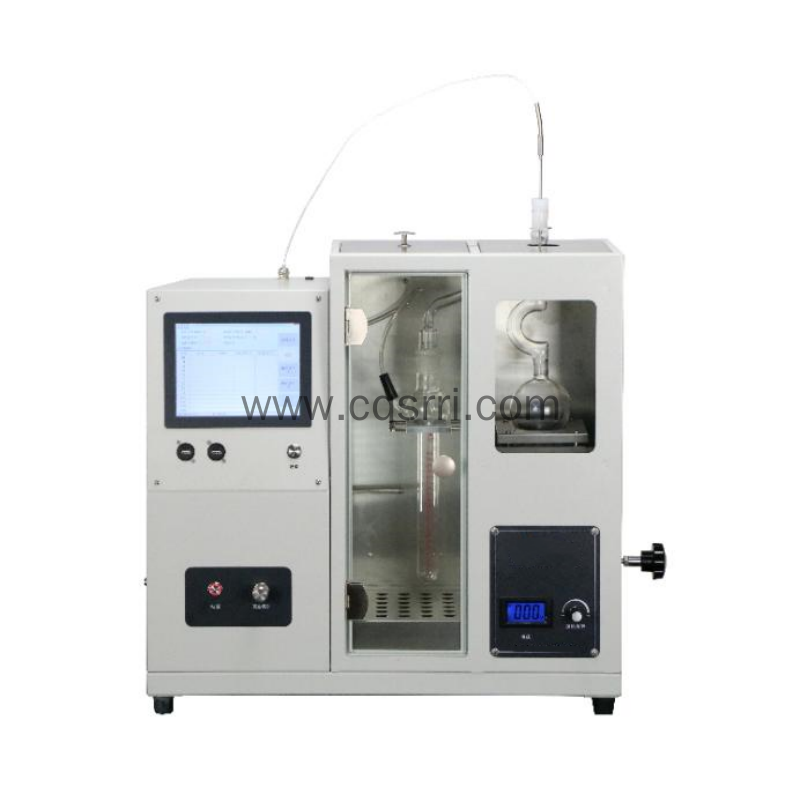

SR-0165B Vacuum Distillation Range Tester
SR-0165B vacuum distillation apparatus is designed and made as per industrial standard SH/T 0165-92 Standard Test Method for Distillation Characteristics of Petroleum Products with High Boiling Point Range by Vacuum Process. It is applicable to determine the distillation characteristics of wax oil, lubricating oils and other petroleum products with high boiling point range.
Details
1. Power supply: AC(220±10%)V, 50 Hz;
2. Total power consumption: ≤1700 W;
3. Heating furnace of distillation flask: 0～1300 W, adjustable;
4. Setting range of vacuum residual pressure: 2～50 mmHg;
5. Accuracy of vacuum residual pressure: ±0.5 mmHg;
6. Heating power of receiver: 350 W, automatically controlled;
7. Temperature control point of receiver:20～50℃ ±3℃, adjustable;
8. Working condition: Ambient temp. 15～35 ℃; RH: < 85％
9. Dimension: 600mm×230mm×610mm
10.Net weight: 30kg
2. Total power consumption: ≤1700 W;
3. Heating furnace of distillation flask: 0～1300 W, adjustable;
4. Setting range of vacuum residual pressure: 2～50 mmHg;
5. Accuracy of vacuum residual pressure: ±0.5 mmHg;
6. Heating power of receiver: 350 W, automatically controlled;
7. Temperature control point of receiver:20～50℃ ±3℃, adjustable;
8. Working condition: Ambient temp. 15～35 ℃; RH: < 85％
9. Dimension: 600mm×230mm×610mm
10.Net weight: 30kg
