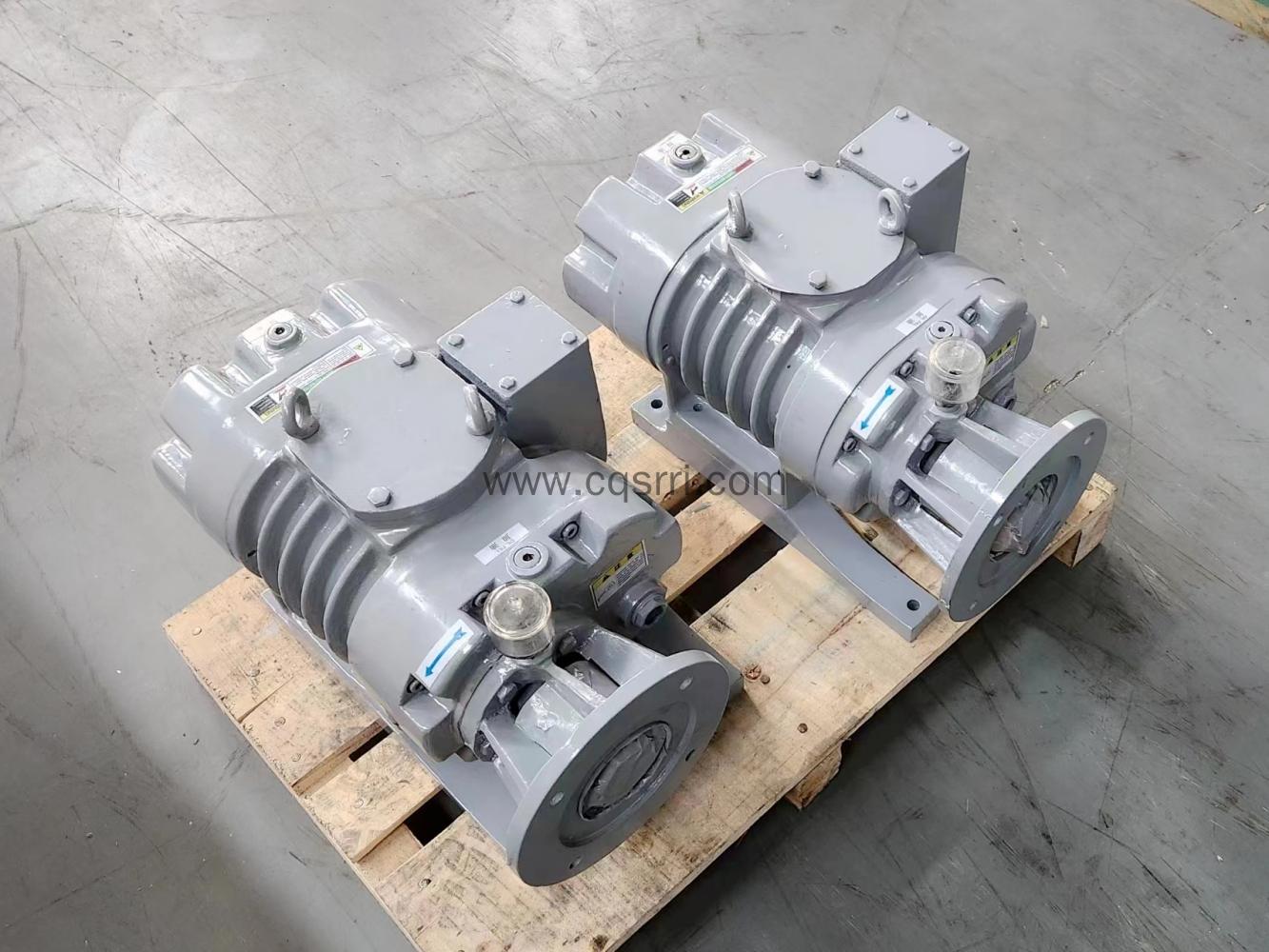

ZJ / ZJB Series Roots Booster Pump

ZJ / ZJB Series Roots Booster Pump

ZJ series mechanical booster pump, also known as Roots vacuum pump, is a positive displacement vacuum pump.

ZJ series Roots vacuum pumps are all made of horizontal structure. The medium and small pumps are directly connected with the motor by couplings, and the big pumps are driven by V-belts.

ZJB series Roots vacuum pump with overflow valve is a derivative product of ZJ type Roots vacuum pump. The pumping principle is the same as that of ZJ type pump. It rotates to produce suction and exhaust.

Details

1. ZJ series roots vacuum pump

Model

ZJ-30

ZJ-70

ZJ- 150A

ZJ-300

ZJ-600

ZJ- 1200A

Pumping speed ( L/s )

30

70

150

300

600

1200

Ultimate pressure(Pa)

5×10-2

5×10-2

5×10-2

5×10-2

5×10-2

5×10-2

Rotation speed (r/min)

2770

2870

2900

1450

2900

1450

Calibre

(mm)

Gas inlet

50

80

100

150

200

300

Air vent

40

50

100

150

150

300

Weight ( Kg )

60

87

198

490

490

1550

Matched power (kW)

0.75

1.5

3

4

5.5

11

Recommended backing pump

2X-4

2X-8

2X-15

2X-30

2X-70

H-150 or two 2X-70A

2.  ZJB series roots vacuum pump

Model

ZJB-30

ZJB-70

ZJB- 150

ZJB-300

ZJB-600

ZJB- 1200

Pumping speed ( L/s )

30

70

150

300

600

1200

Ultimate pressure(Pa)

5×10-2

5×10-2

5×10-2

5×10-2

5×10-2

5×10-2

Start pressure (Pa)

101326

101326

101326

101326

101326

101326

Max allowable pressure difference (Pa)

5332

5332

5332

4266

4266

4266

Rotation speed (r/min)

2870

2870

2900

1450

2900

1450

Calibre

(mm)

Gas inlet

50

80

100

150

200

300

Air vent

40

50

100

150

150

300

Weight (Kg)

75

100

215

480

503

1580

Matched power (kW)

0.75

1.5

3

4

5.5

11

Recommended backing pump

2X-4

2X-8

2X- 15

2X-30

2X-70

2X-70×2
