ZJ / ZJB Series Roots Booster Pump

ZJ / ZJB Series Roots Booster Pump

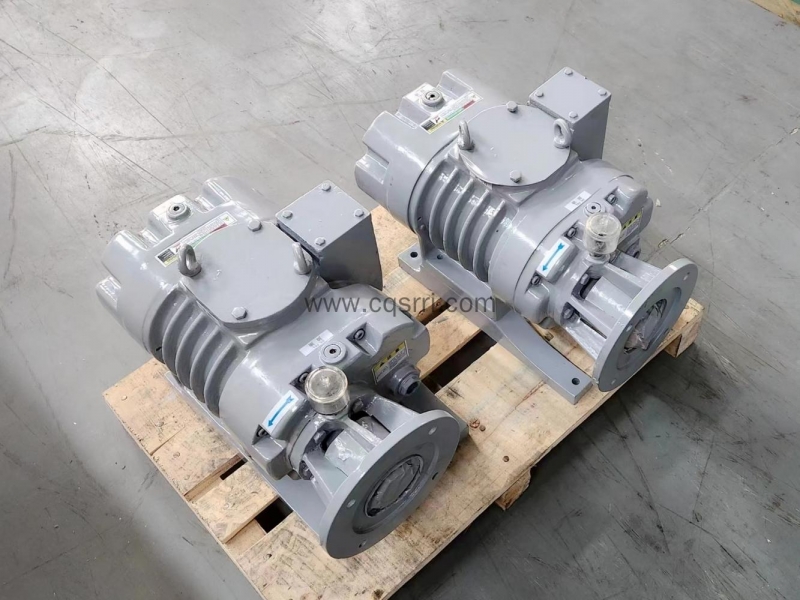

ZJ series mechanical booster pump, also known as Roots vacuum pump, is a positive displacement vacuum pump.

ZJ series Roots vacuum pumps are all made of horizontal structure. The medium and small pumps are directly connected with the motor by couplings, and the big pumps are driven by V-belts.

ZJB series Roots vacuum pump with overflow valve is a derivative product of ZJ type Roots vacuum pump. The pumping principle is the same as that of ZJ type pump. It rotates to produce suction and exhaust.

1. ZJ series roots vacuum pump

Model		ZJ-30	ZJ-70	ZJ- 150A	ZJ-300	ZJ-600	ZJ- 1200A
Pumping speed ( L/s )		30	70	150	300	600	1200
Ultimate pressure(Pa)		5×10－2	5×10－2	5×10－2	5×10－2	5×10－2	5×10－2
Rotation speed (r/min)		2770	2870	2900	1450	2900	1450
Calibre (mm)	Gas inlet	50	80	100	150	200	300
Calibre (mm)	Air vent	40	50	100	150	150	300
Weight ( Kg )		60	87	198	490	490	1550
Matched power (kW)		0.75	1.5	3	4	5.5	11
Recommended backing pump		2X-4	2X-8	2X-15	2X-30	2X-70	H-150 or two 2X-70A

2. ZJB series roots vacuum pump

Model		ZJB-30	ZJB-70	ZJB- 150	ZJB-300	ZJB-600	ZJB- 1200
Pumping speed ( L/s )		30	70	150	300	600	1200
Ultimate pressure(Pa)		5×10-2	5×10-2	5×10-2	5×10-2	5×10-2	5×10-2
Start pressure (Pa)		101326	101326	101326	101326	101326	101326
Max allowable pressure difference (Pa)		5332	5332	5332	4266	4266	4266
Rotation speed (r/min)		2870	2870	2900	1450	2900	1450
Calibre (mm)	Gas inlet	50	80	100	150	200	300
Calibre (mm)	Air vent	40	50	100	150	150	300
Weight (Kg)		75	100	215	480	503	1580
Matched power (kW)		0.75	1.5	3	4	5.5	11
Recommended backing pump		2X-4	2X-8	2X- 15	2X-30	2X-70	2X-70×2
