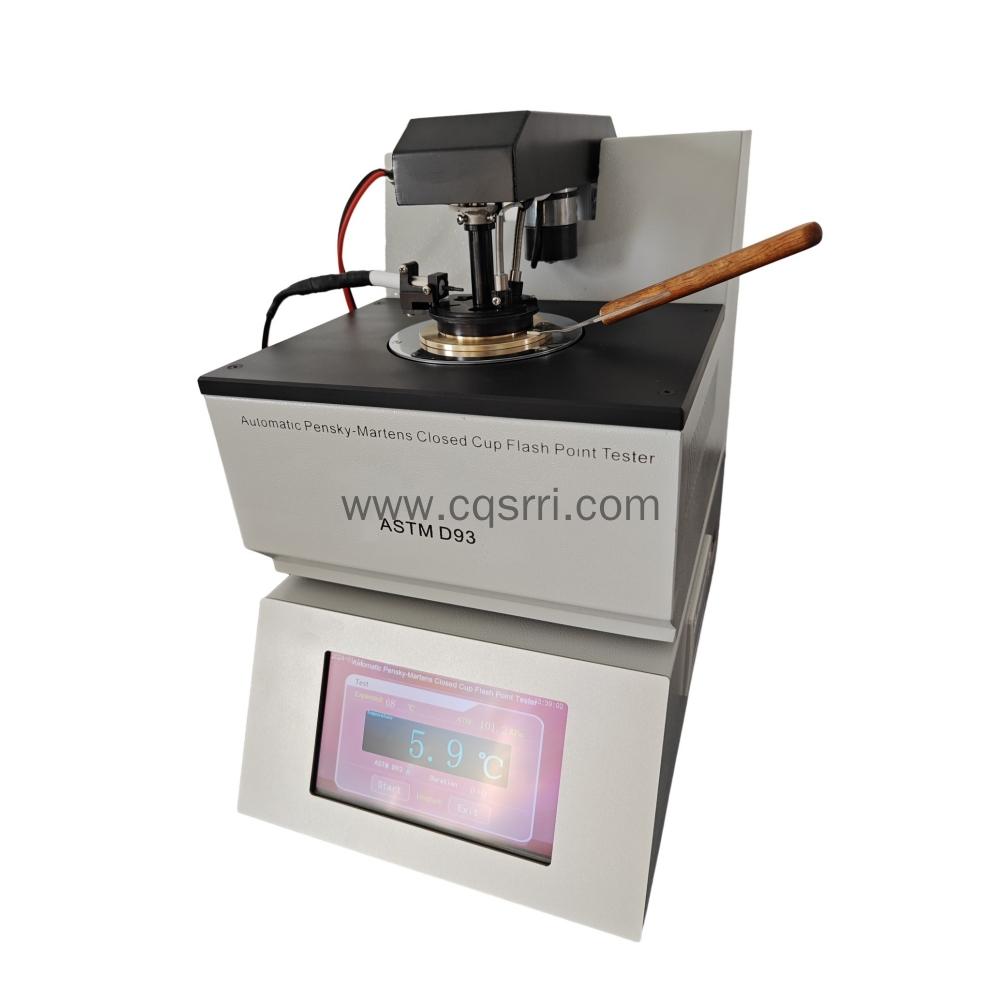

SR-93 Fully Automatic Pensky-Martens Closed Cup Flash Point Tester

SR-93 Fully Automatic Pensky-Martens Closed Cup Flash Point Tester

SR-93 Fully Automatic Pensky-Martens Closed Cup Flash Point Tester conforms to GB/T261, ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester, applicable for all Procedure A, B, C. It is for measuring the minimum temperature of the closed cup of petroleum products heated to the point where the vapor and the mixture of air contact the flame and flash.
Details
1, Measurement range: 40 ~ 360℃
2, Applicable standards: GB/T261, ASTM D93 (Procedure A, B and C)
3, Temperature detection: platinum resistance (Pt100)
4, Flash point detection: micro thermocouple

5, Heating rate:

  A method 5 ~ 6℃/ min (GB/T261A, ASTM D93A)

  B method 1 ~ 1.5℃/ min (GB/T261B, ASTM D93B)
  C method 2.5-3.5℃/ min (GB/T261C, ASTM D93C)

6. Heater: 220V, 0.5KW

7, Stirring speed:

  90-120rpm (GB/T 261A, ASTM D93 A)

  250±10rpm (GB/T 261B, ASTM D93 B)

  90-120rpm (GB/T 261C, ASTM D93C)
8, Ignition mode: optional gas ignition or electric ignition
9, Working power supply: AC220V±10%, 50Hz
