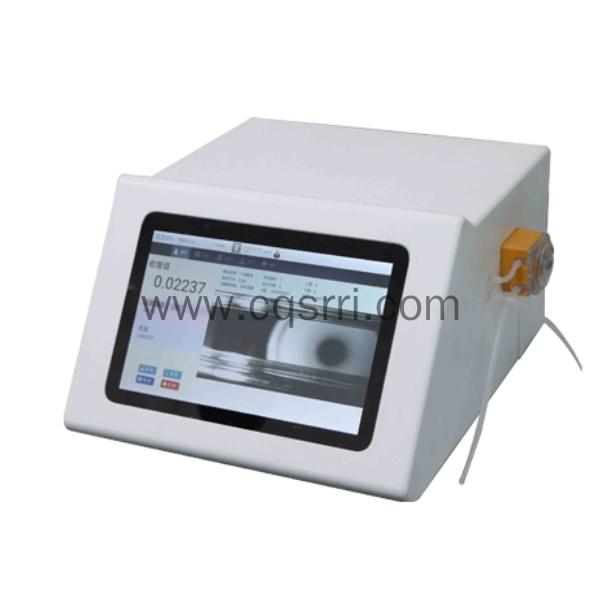

SR-4052F Electronic Liquid Density Meter (U-tube Oscillation Method)
SR-4052F automatic densitometer is based on the principle of U-tube oscillation method, which perfectly combines Peltier's precise temperature control technology with high-definition video camera technology to not only provide accurate, stable and reliable test results, but also provide users with efficient and convenient test experience. High-definition video can see whether there is bubble influence in the sample, using pulse excitation, high-precision detection technology, convenient for users to accurately and quickly measure the sample density and density related parameters. It confirms to test methods ASTM D4052, D1250, D1475, D2501,D4806, D5002, D5931, D6448 etc.
Details
Model |
SR-4052F-50 |
SR-4052F-70 |
SR-4052F-90 |
Test mode |
Density, alcohol concentration and custom formula |
||
Measuring range |
0 g/cm3 to 3 g/cm3 |
||
Resolution |
±0.0001 g/cm3 |
±0.00001 g/cm3 |
±0.00001 g/cm3 |
Repeatability |
±0.0001 g/cm3 |
±0.00005 g/cm3 |
±0.00005 g/cm3 |
Accuracy |
±0.0003 g/cm3 |
±0.00008 g/cm3 |
±0.00008 g/cm3 |
Injection method |
Automatic (compatible with manual) |
||
With video |
YES |
||
Temperature control method |
Peltier |
||
External heater |
No |
No |
Yes |
Temperature control range |
5℃-45℃ |
5℃-65℃ |
5℃-85℃ |
Temperature control stability |
±0.02℃ |
||
Display method |
10.4 inch FTF color touch screen |
||
Data storage |
32G |
64G |
64G |
Output method |
USB, RS232, U disk |
||
User Management |
Yes / four-level authority management |
||
Standards compliant |
ASTM D1250, D1475, D2501, D4052, D4806, D5002, D5931, D6448 |
||
21 CFR PART 11 |
YES |
||
Audit trail |
YES |
||
Electronic signature |
YES |
||
Custom method library |
YES |
||
Export file to verify high-level protection MD5 |
YES |
||
WIFI printing |
YES |
||
Export in multiple file formats |
PDF & Excel |
||
Packin Size |
425*410*250mm |
||
Power supply |
110V -230V 50Hz / 60Hz |
||
Gross Weight |
8.5kg |
||
