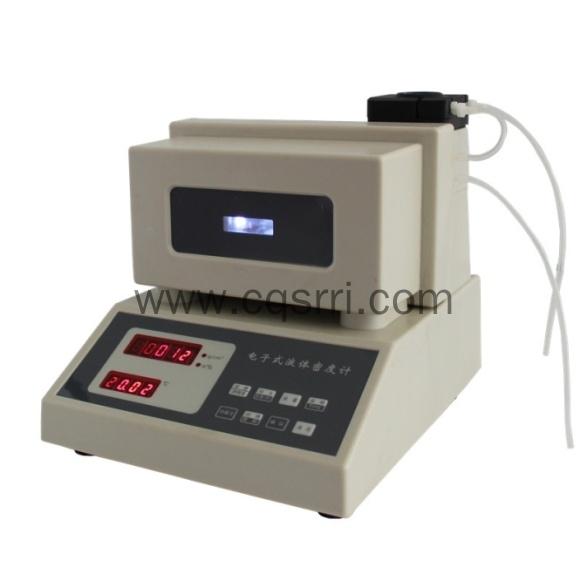

SR-4052 Electronic Liquid Density Tester (U-tube Oscillation Method)

SR-4052 Electronic Liquid Density Tester (U-tube Oscillation Method)

SR-4052 electronic liquid density meter measures the liquid density based on the principle that the oscillation frequency is different when the double U-shaped tube is filled with different media. After the liquid to be measured is pumped into the sensor of the resonant cylinder, the measurement data is processed by the single-chip microcomputer, which is fast and direct, and has high sensitivity. It is composed of a double tuning fork density sensor, a vibrating cylinder circuit, a temperature measuring circuit, a CPU, a display, a constant temperature tank, a liquid inlet pump and a control panel.
Applicable standards: GB/T29617, GB/T29617-2013, GB/T2013-2010, GB23971-2009, GB4747-2009, SH/T0604-2000, SN/T2383-2009, SH/T0729-2004, ASTM D4052, ASTM D5002, ASTM D1250, ASTMD3505, ISO12185:1996
Details
Density measurement range: 0.001 -1.999g/cm³
Density accuracy 0.001 g/cm³
Automatic temperature control: 20±0.1℃
U-tube visual function: available
Automatic sampling detection function: available
Ambient temperature: 5℃~35℃
Minimum sample volume: approx. 2 ml
Data storage capacity: 80 measurement results in internal memory
