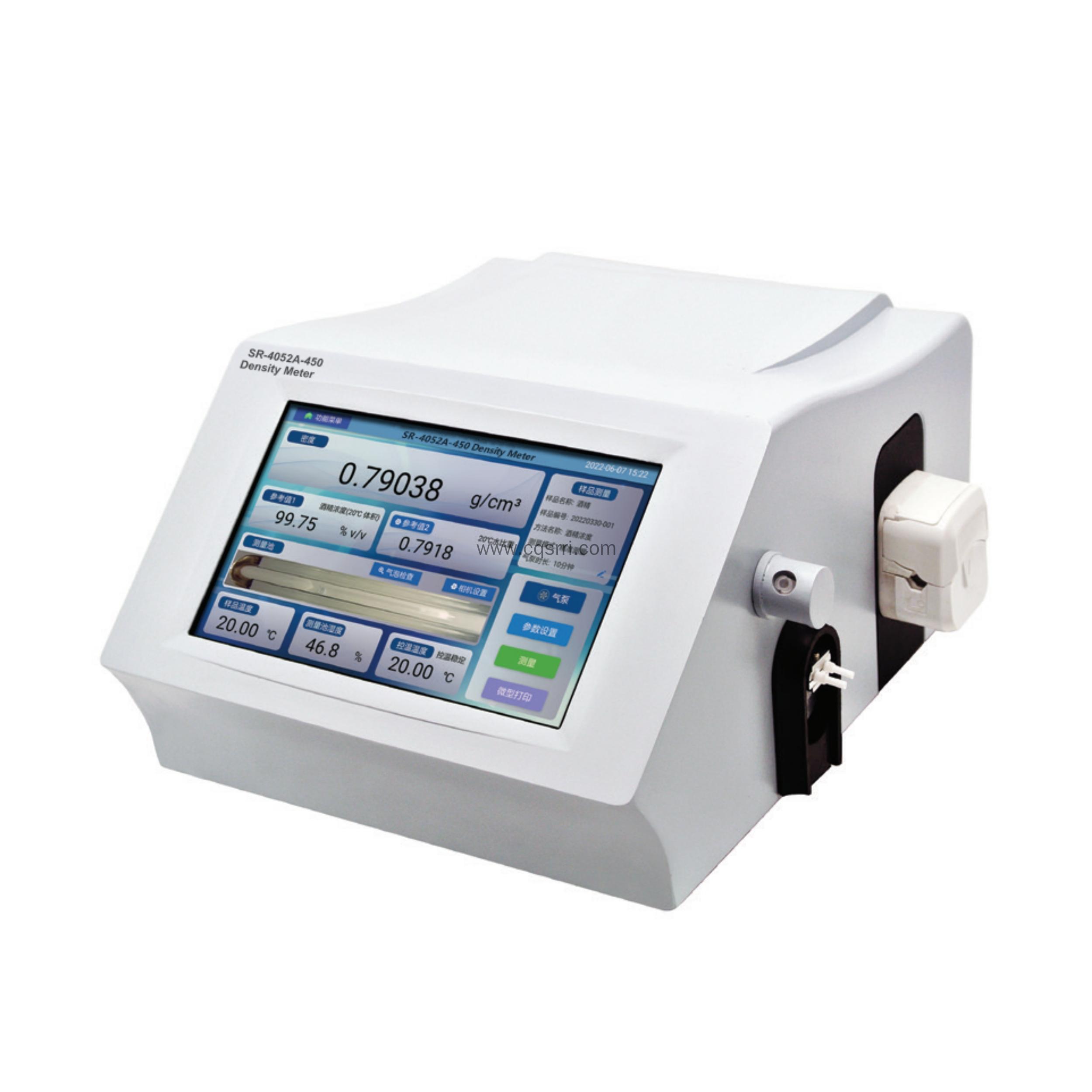

SR-4052A Electronic Liquid Density Tester (U-tube Oscillation Method)

Density resolution

0.0001g/cm3

Repeatability

±0.0005g/cm3

Accuracy

±0.001g/cm3

Test range

0.0001-1.9999g/cm3

Temperature resolution

0.01℃

Repeatability

±0.1℃

Temperature control method

Peltier temperature control

Temperature control range

20°C or 25°C or other temperature (need tell us when order)

Test Methods

U-shape vibrating tube method

Injection capacity

Manual injection about 2mL, automatic pump injection about 3mL

Injection method

Syringe manual injection or automatic sampling by built-in injection pump

Cleaning function:

Automatic cleaning (compatible with manual)

Whether with video

Yes

Measure time

1-4 minutes for manual operation, 2-10 minutes for automatic program (according to the actual temperature of the sample)

Display

10-inch high-definition touch screen

Display values

Density, Relative Density, Temperature, Concentration, Baume

Measurement methods

Store 100 sets of custom measurement methods, including measurement parameters for each sample

Judgment of stability

According to the measurement accuracy and time, the stabilization time can be set by yourself

Concentration conversion

Enter the density and concentration table or conversion formula, automatically convert the concentration value

Calculations

100 sets of test values are automatically saved, and the average, maximum and minimum values can be automatically calculated

Output method

Standard RS232 (optional RJ45, SD card, U disk, USB)

Optional functions

User management, audit trail, electronic signature, export file verification, high-level protection MD5, multiple file format export such as PDF and Excel, other functions can be customized according to requirements.
