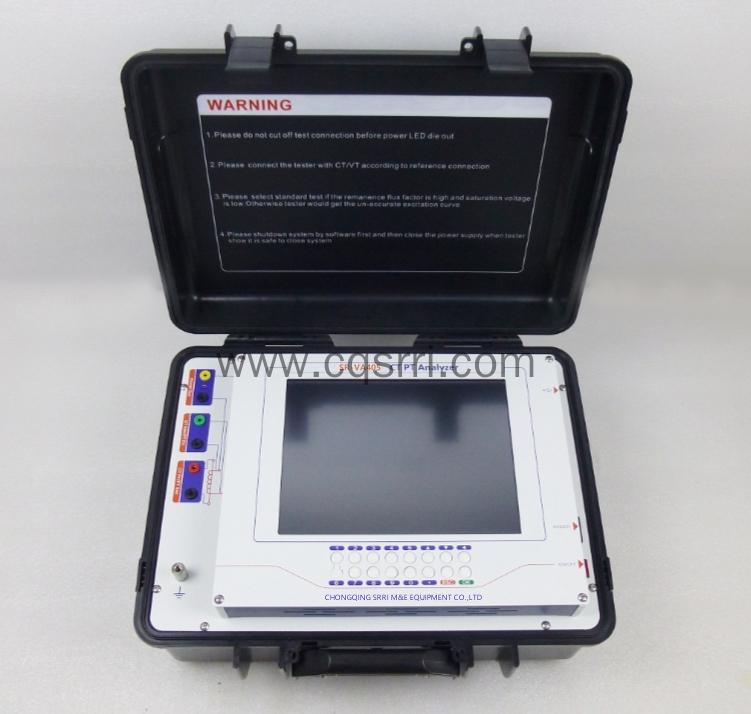

SR-VA405 CT VT Transformer Tester

SR-VA405 CT VT Transformer Tester

SR-VA405 is applied for current transformer and voltage transformer testing in the electric power system. The tester is able to test CT and VT according to both IEC standard and ANSl standard. The voltage level of CT and VT used for testing could be 0.2Kv -1000kv.
It has a 12.1 inches touch pad LCD. All operation conducted with touch pad or external physical keyboard. It is also able to test with a laptop control from Ethemet port. The maximum storage records could reach 30000. Word test report could be auto generated by tester or PC application.
Details

Tests for Current Transformer:

1)Ratio error and phase error test for all CTs

2)Excitation curve and knee point test for all CTs

3)Instrument factor FS test of measurement CTs

4)Accuracy limit factor ALF measurement of protection CTs

5)CT Winding resistance measurement

6)Short current factor Kssc and dimension factor Ktd test for transient protection CTs

7)CT polarity test

8)CT secondary burden test

9)CT nameplate deduce

10) Test multi taps CT with switch box

11)Test bush CT inside body of power transformer

Tests for Voltage Transformer:

1) Ratio error and phase error test of VT

2) Excitation curve test of VT

3) VT Secondary burden test

4) Winding resistance test of VT primary and secondary

5) VT and CVT ratio error test with 4KV voltage booster

6) VT induce voltage withstand test

General functions

1) Making word report automatic

2) Auto comparison of test results and standard requirements. And give pass or fail for sample CT

3) Tester can be operated by laptop through Ethernet port

PC application support bulk report making
