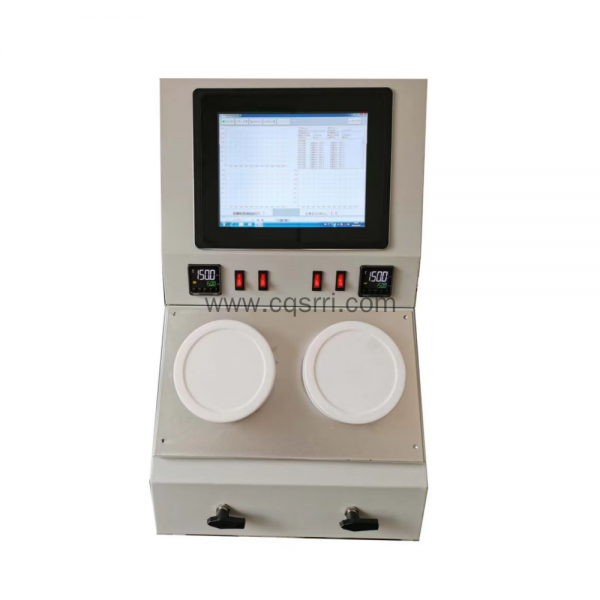

SR-2272C RPVOT Automatic Lubricating Oil Oxidation Stability Tester

SR-2272C lubricating oil oxidation stability tester is designed and manufactured according to SH/T0193 Test Method for Oxidation Stability of Lubricating Oil by Rotating Pressure Vessel, ASTM D2272 Standard Test Method for Oxidation Stability of Steam Turbine Oils by Rotating Pressure Vessel, ASTM D2112, ASTM D7098 and used for new or in-service oils such as steam turbine oil, lubricating oil, insulating oil and automobile gasoline engine oil.

1. Power supply: AC220V±10%.
2. Heating tube power: 2500W.
3. Pressure sensor range: 0~1.6MPa, accuracy: ±2‰.
4. Temperature control range: Continuously adjustable from room temperature to 200.0°C, 150.0°C is commonly used.
5. Temperature control accuracy: ±0.1℃.
6. Rotating mechanism speed: 100±5r/min.
7. Angle between the oxygen bomb and horizontal plane: 30°.
