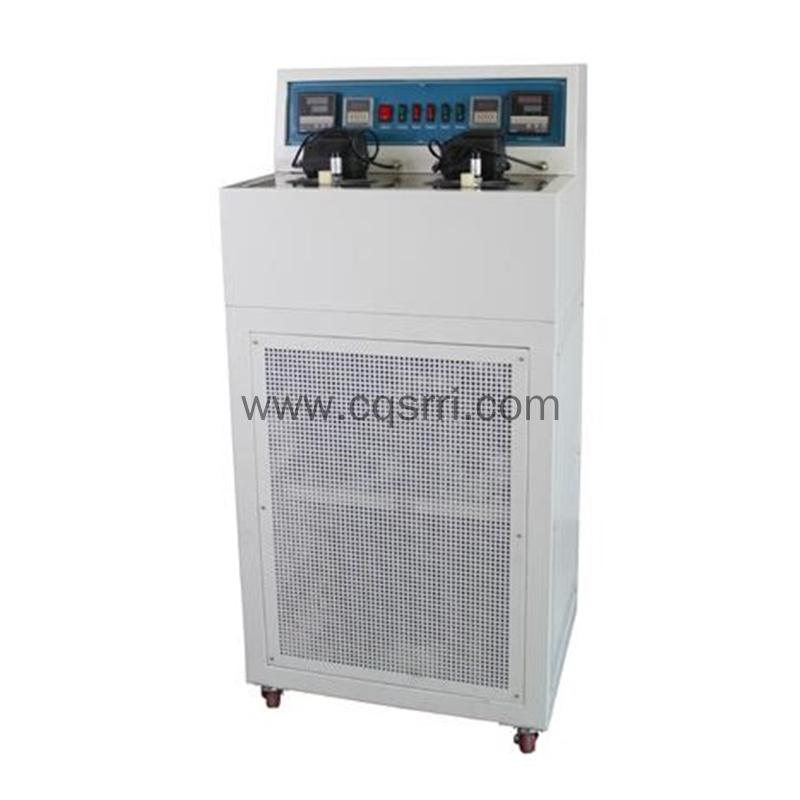

SR-97D Pour Point &Solidification Point Tester

1. Power supply: AC220V, 50Hz

2. Constant temperature cold bath: 2 baths with 4 holes; the 2 cold baths can be individually controlled.

3. Temperature control method: Intelligent digital display PID temperature control meter.

4. Temperature control range and accuracy: room temperature～-70℃±0.1℃ (any point).

5. Refrigeration method: imported compressor cascade refrigeration, with high refrigeration depth, fast speed and stable performance.

6. Control method: adopts PID intelligent instrument with microprocessor for temperature control, digital display temperature, with temperature correction function, self-tuning, self-checking function, intuitive temperature display and high control accuracy.

7. Temperature measurement: Pt100 platinum resistance.

8. Stirring method: The motor drives the stirrer to stir to make the temperature in the bath uniform, thereby solving the inaccuracy of the test results caused by the temperature difference.

9. Electronic digital automatic timer.

10. Ambient temperature: 5℃～35℃.

11. Relative humidity: ≤85%.

12. Total power consumption: < 1000W.

13. The solidification and pour point tester is configured in accordance with standards, and the test can be done right after unpacking.

14. Thermometer: Comply with GB/T 514 "Technical Conditions of Liquid Thermometer for Petroleum Products Test".

15. Medium in the water bath: adopts absolute ethanol.

16. Instrument size: 530*500*1110mm.
