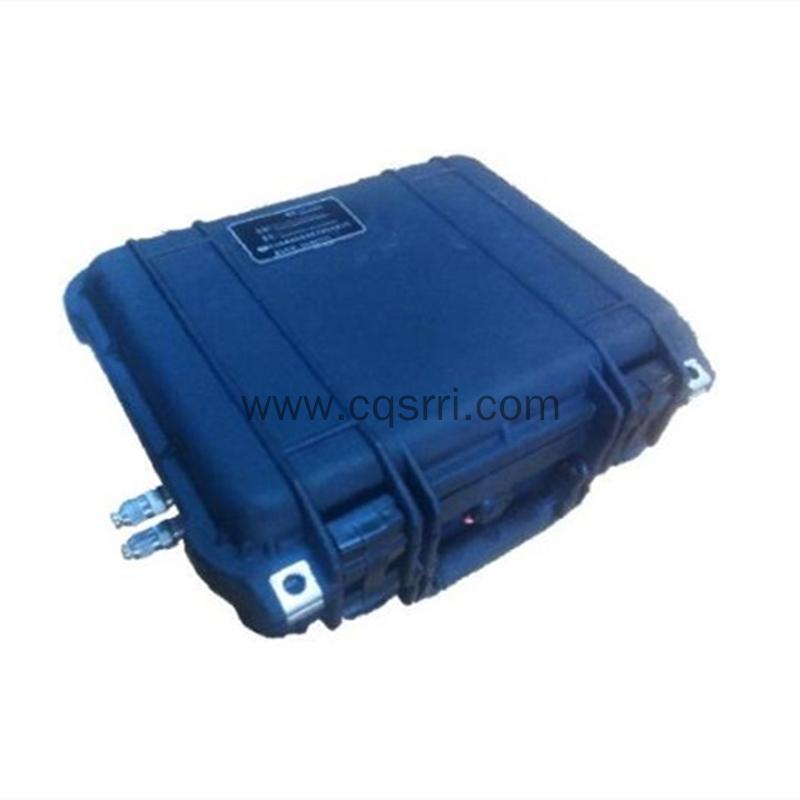

SR-5 Portable Oil Particle Counter

SR-5 Portable Oil Particle Counter

SR-5 portable oil particle counter, analyzing oil particle, moisture and temperature. It reports contamination situation of oil system, so operators could prevent machines from damage in early time. It reduces maintenance charge to the lowest, shortens unplanned machinery shutdown time to prolong service life and improve system security. It can be visual operated via color LED screen. The instrument is applied for testing mineral or organic phosphate synthetic oil, such as hydraulic oil, lubricant oil, transformer oil, turbine oil, gear oil, engine oil, etc. It is widely used in aerospace, electric power, petroleum, chemical industry, transportation, ports, metallurgy, machinery, motor manufacture and so on.

Details

Main Technical Data

Work Pressure: <10bar

Oil Viscosity: 0~350 cst

Flow Rate: 60~110ml/min

Power Supply: AC 180-250V, rechargeable lithium battery

Environment Temperature: -15℃~40℃

Oil Temperature: long time 0℃~55℃ (24Hour); short time <85℃ (10min)

Protection Level: IP67(case closed)

Dimension: 339mm × 295mm × 152mm (L × W × H)

Weight: About 4Kg

Specifications of Contamination

Particle Size Passage: 4µm(c), 6µm(c), 14µm(c), 21µm(c), 38µm(c), 70µm(c) and 5µm, 15µm, 25 µm, 50µm, 100µm

Test Standard: ISO 4406  0 ~24

          NAS 1638  00 ~12

          GJB 420B  00 ~12

Sensitivity: 1µm(ISO4402); 4µm(c) (ISO11171)

Repeatability Accuracy: ±0.5 ISO Level

Specifications of Oil Moisture

Measurement Range: relative humidity 0~100%RH, temperature -20~80℃

Resolution Ratio: relative humidity 0.1%RH, temperature 0.1℃

Measurement Accuracy: relative humidity≤ ±3%@ (0~80% RH) (0℃~60℃) % FS; temperature ±1℃FS
