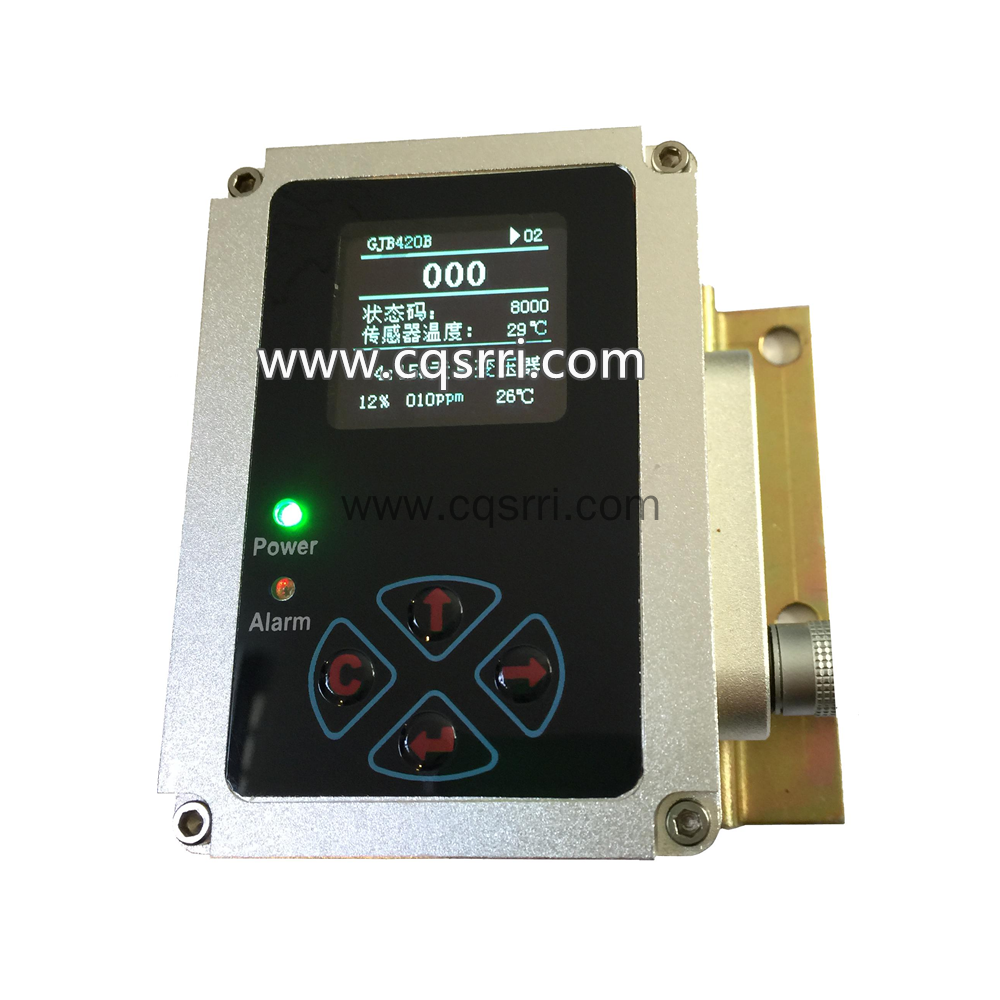

SR-4406 Online Oil Particle Counter

Ø Weight & dimension: 538g, 105×89×64 mm（L×W×H）

Ø Connector joint: M10×1mm (standard)

Ø Online working flow: 50mL/min ~300 ml/min

Ø Ambient temperature & humidity: -20℃～60℃, RH20%～85% non-condensing

Ø Storage temperature & humidity: -40℃～85℃, 98%

Ø Oil temperature: -10℃～80℃

Ø Power supply: DC9V~36V (ripple<100mVp-p). Suggest DC24V, current should be above 1A

Ø Interface: RS 232

Ø Max pressure: 1Mpa

Pollution detection

Ø Particle size: 5µm，15µm，25 µm，50 µm，100µm；

4µm(c)，6µm(c)，14µm(c)，21 µm(c) ，38 µm(c) ， 70 µm(c)

Ø Test standard: Built-in multiple standards including ISO4406, NAS1638, GJB420A, customization

Ø Repeatability precision: ±0.5 ISO

Moisture detection

Ø Measuring range: relative humidity 0-100%RH, temperature -20~80℃

Ø Resolution: relative humidity 0.1%RH, temperature: 0.1℃

Measurement accuracy: relative humidity≤±3%@0~80%RH 0～60℃ % FS; temperature: ±1℃FS
