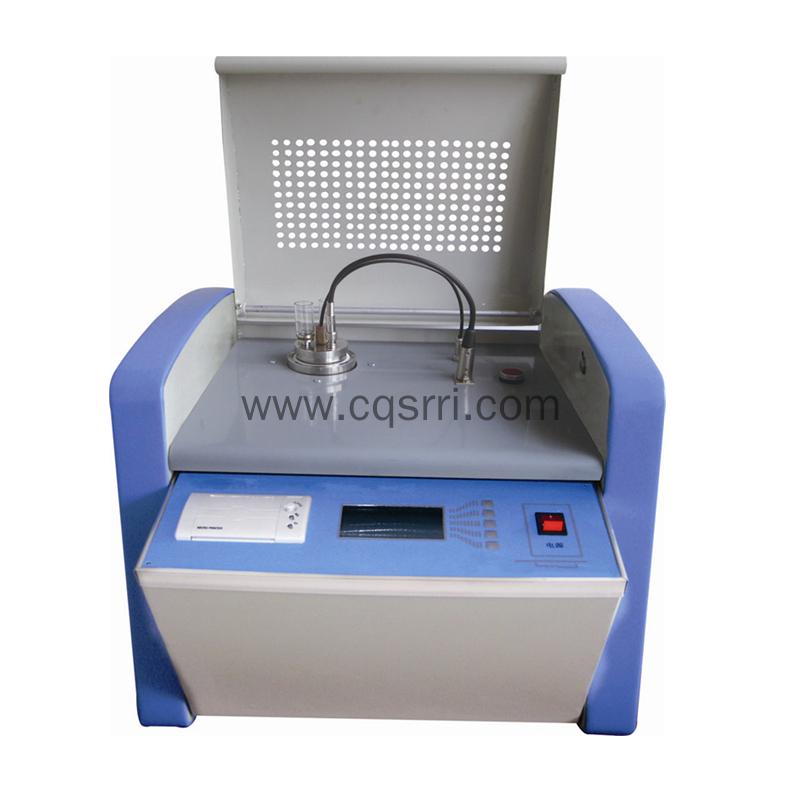

SR-924 Insulating Oil Dissipation Factor and Relative Permittivity Tester

SR-924 Insulating Oil Dissipation Factor and Relative Permittivity Tester

This insulating oil dielectric loss and resistivity tester complies to ASTM D924, IEC and GB/T5654-2007 Liquid Insulating Material Relative Permittivity, Dielectric Loss Factor And DC Resistivity Measurements. It’s applied to test the dielectric loss factor and DC resistivity of insulation oil and other liquid insulating medium. The instrument adopts intelligent automatic measurement, equipped with LCD display. Test results can be automatically stored and printed out so that the operator without professional training can use it easily.

Details

> Power supply: AC 220V ± 10%, 50Hz / 60Hz ± 1%

> Measuring range: capacity: 5pF ~ 200pF

  Relative permittivity: 1.000 to 30.000

  Dielectric loss factor: 0.00001 to 100

> DC Resistivity: 2.5 MΩm ~ 20 TΩm

> measurement Accuracy: Capacitance: ± (1% of reading + 0.5pF)

  Relative permittivity: ± 1% of reading

  Dielectric loss factor: ± (1% reading +0.0001)

  DC resistivity: ± 10% of reading

> Resolution: capacity: 0.01pF

  Relative permittivity: 0.001

  Dielectric loss factor: 0.00001

> Temperature range: 0 ~ 125 ℃

> Temperature measurement error: ± 0.5 ℃

> AC test voltage: 500 ~ 2200V continuously adjustable frequency 50Hz

> DC test voltage: 0 ~ 500V continuously adjustable

> Applicable Temperature: 0 ℃ ~ 40 ℃

> Applicable Humidity: <75% RH

> Power: 100W

> Size: 500×360×420 mm

> Weight: 22Kg
