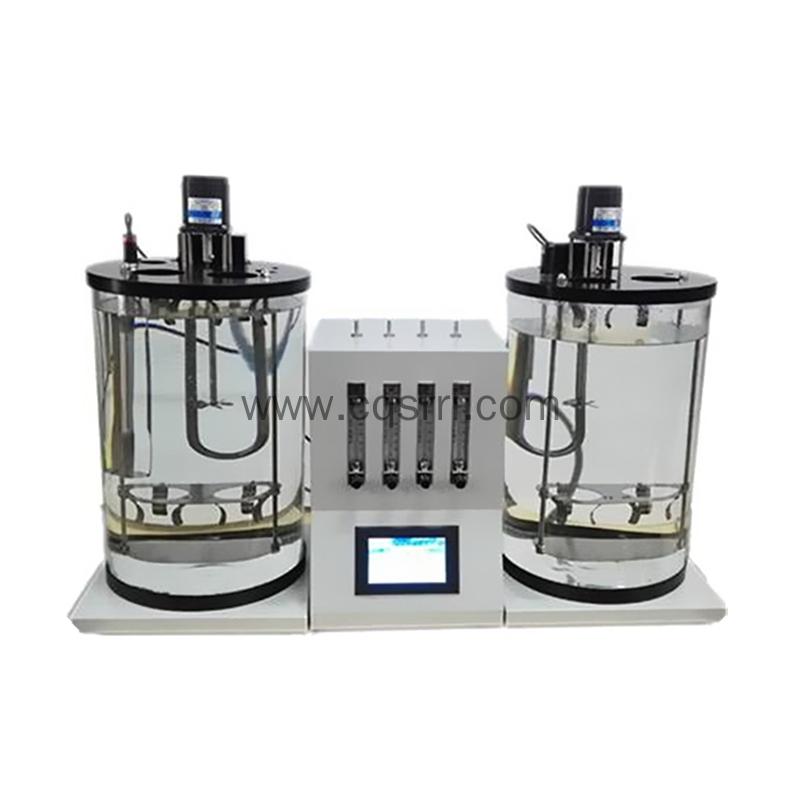

SR-892 Lubricating Oil Foaming Characteristics Tester

SR-892 Lubricating Oil Foaming Characteristics Tester

This instrument is designed and manufactured in accordance with GB/T 12579, ASTM D892 and IP146, used for determination of the foaming tendency and stability of lubricating oil, hydraulic oil, gear oil, fire-resistant oil etc.

Details

Ø Display mode: color LCD display

Ø Temperature control range: 24℃93.5℃

Ø Temperature control accuracy: ±0.1℃

Ø Temperature control: Low temperature bath: 24±0.1℃ High temperature bath: 93.5±0.1℃

Ø Flow control: 16160ml/min float flow meter, adjustable

Ø Air source: own air source, 3L/min

Ø Gas diffusion head: 30006000ml/min, under 2.45Kpa

Ø Timing device: 099.99 hours

Ø Power source: AC220V±10% 50Hz±5%

Ø Work rate: 3300W

Ø Input chiller power: 100W

Ø Ambient temperature recommendation: room temperature40℃

Ø Environmental humidity: ≤85%
