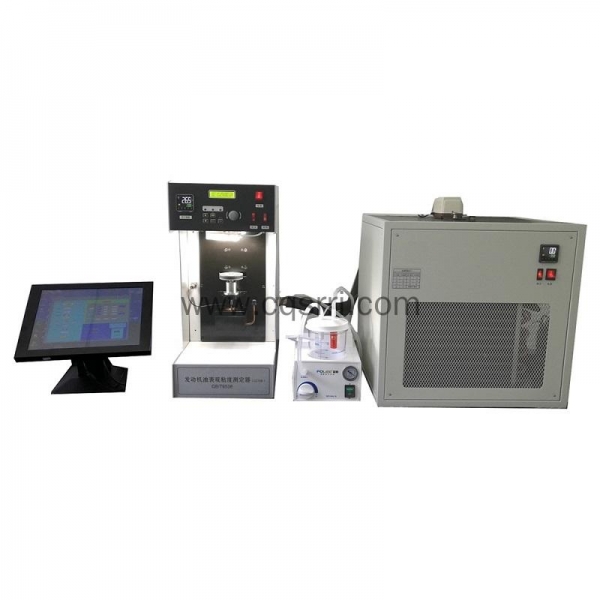

SR-2602 Cold Cranking Simulator Oil Viscosity Test Equipment

SR-2602 Cold Cranking Simulator Oil Viscosity Test Equipment

This CCS engine oil apparent Viscosity tester complies with technical specifications such as GB/T6538-2010, ASTM D2602, ASTM D5293, to test the low temperature dynamic viscosity index of engine oil. The instrument can determine the apparent viscosity of the oil at temperatures -35°C ~ -5°C with temperature interval of 5 °C. It has accurate measurement, good repeatability, stable performance and simple operation.


Ø Temperature range: room temperature ~ -70 °C (external circulation alcohol bath temperature range)

Ø Cold bath temperature control accuracy: ±0.1 °C

Ø Stator temperature control accuracy: ±0.05 °C

Ø Viscosity measurement range: 1200 ~ 27000 mPa.s;

Ø Use environment: 10 ° C ~ 40 ° C

Ø Environmental humidity: < 85%

Ø Power: < 2.5KW

Ø Power source: AC 220V ± 20%

Ø Detection temperature point: -35, -30, -25, -20, -15, -10, -5 degrees Celsius
