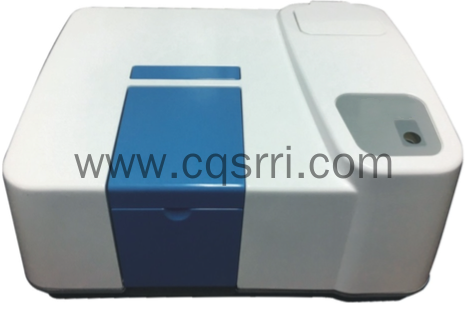

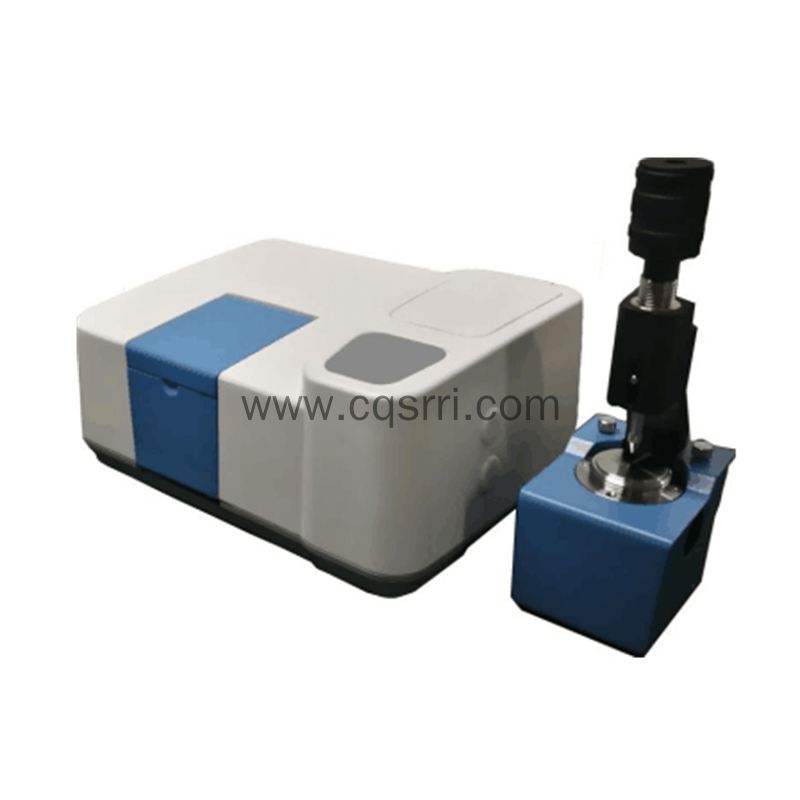

SR-FTIR-SMART Fourier Transform Infrared Spectrometer
SR-FTIR-SMART fourier transform infrared spectrometer is small and portable, stable and reliable, with easy operation and good expandability. It is widely used in the fields of medicine, materials, chemical industry, environmental protection, quality inspection, universities, etc. It is an necessary analytical testing tool in corporate laboratory testing and university teaching scientific research. It can be configured for various testing applications as per ASTM D2412, EN 14078, ASTM D7963, ASTM D2668 etc
Details
Item |
Specifications |
Spectral range |
7800~350 cm-1 |
Resolution |
better than 1.0 cm-1 |
Detector |
High-sensitivity import detector |
Beam splitter |
KBr substrate plated with germanium,moisture-proof coating |
Scan speed |
Microcomputer control to select corresponding scanning speed, with continuously adjustable gears, and automatic spectrogram alignment. |
Light source |
Long-life and high-intensity air-cooled infrared light source (import) |
Signal-to-noise ratio |
better than 20000:1 P-P value |
Linearity |
<0.1% (4400~500 cm-1, excluding water vapor and CO2） |
Power supply |
AC220V / 50Hz |
Dimensions |
355mm×265mm×160mm |
Weight |
9.6 kg |
Data transmission interface |
USB 2.0 |
Support system |
Windows XP, Windows 7, Windows 10 |
