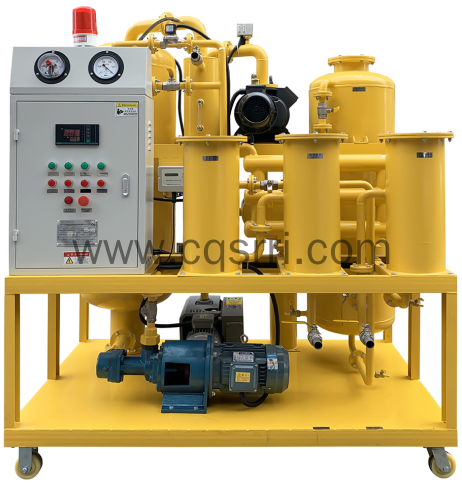

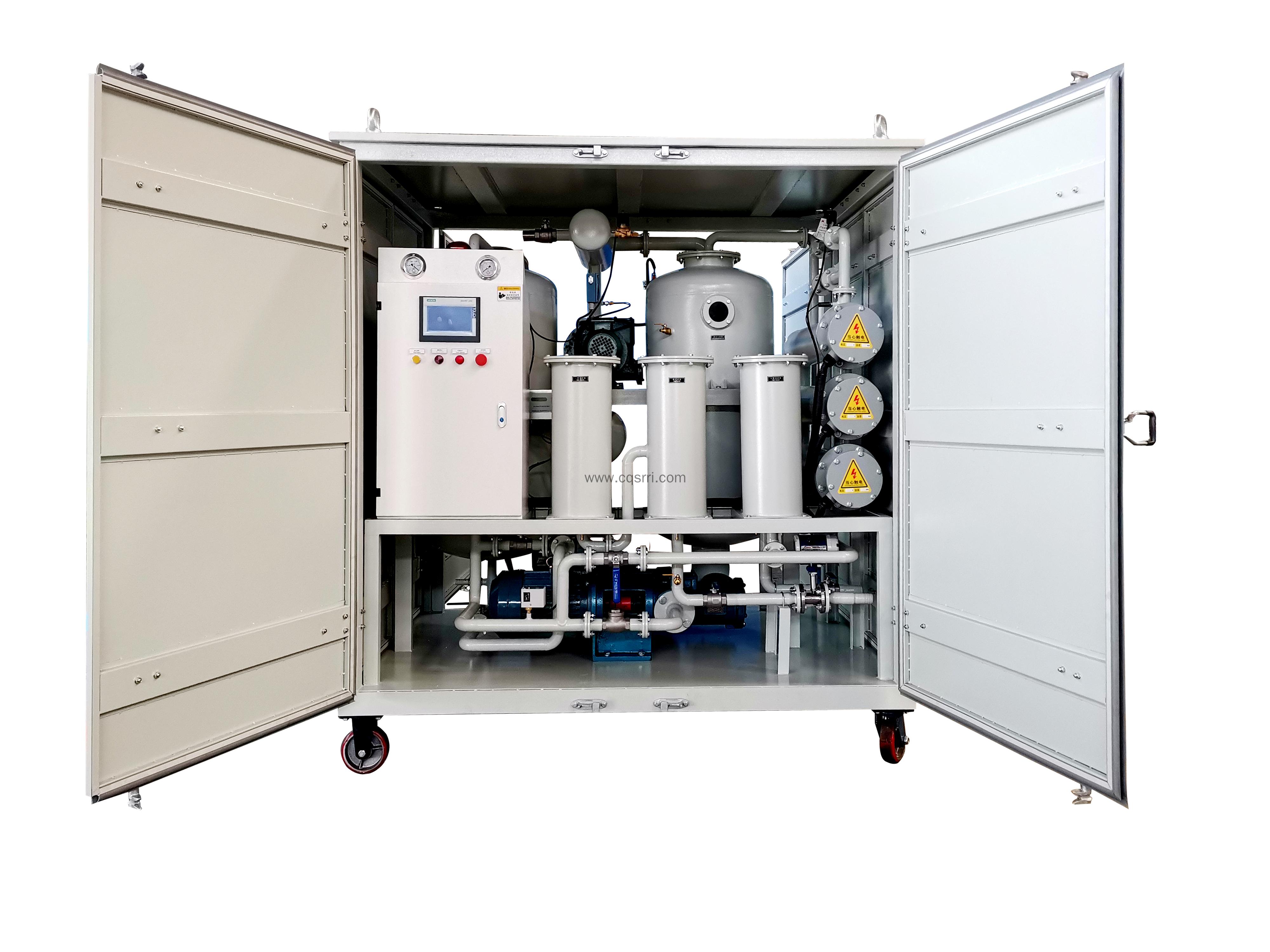

SR-DTR Double Vacuum Transformer Oil Regeneration Plant

This double stage vacuum oil regeneration machine is specially designed to completely regenerate insulating oils in energized or de-energized transformers. It not only provides regular oil purification including degassing, drying and particulate removal but also removes acidity, sludge, other soluble oil decay products, and improves color. This is accomplished by the high vacuum dehydration and degassing technology, multi-stage precision particulate filters, and the regeneration unit with our specialized pure physical regeneration medium. After treatment, the oil can be reused as new oil.

Parameter		Unit	DTR-30	DTR-50	DTR-100	DTR-150	DTR-200	DTR-250	DTR-300
Flow rate		L/h	1800	3000	6000	9000	12000	15000	18000
Working vacuum		MPa	-0.08～-0.099
Working pressure		MPa	≤0.3
Temperature		℃	20～80
Power			3 ph 380V 60Hz (Or as needed)
Working noise		dB(A)	75	75	75	75	80	80	80
Heating power		kW	30	30	45	60	75	90	120
Total power		kW	35.5	37.5	52.5	71.4	86.5	102.5	135
Oil Inlet/Outlet		mm	φ25	φ32	φ42	φ50	φ50	φ60	φ60
Weight		Kg	600	800	1050	1400	1800	2000	2200
Size	Length	mm	1050	1100	1200	1450	1600	1800	1900
	Width	mm	750	800	950	950	1100	1200	1200
	Height	mm	1350	1400	1500	1650	1800	1900	1900
Index after clean	BDV	kV	≥75
	Moisture	PPM	≤3
	Gases	%	0.1
	Impurity	μm	≤5 or1 (customizable), no free carbon
	IFT	dynes/cm	≥40
	Acid	mgKOH/g	≤0.03
	Dielectric loss factor	Tgδ (90℃)	≤0.001
