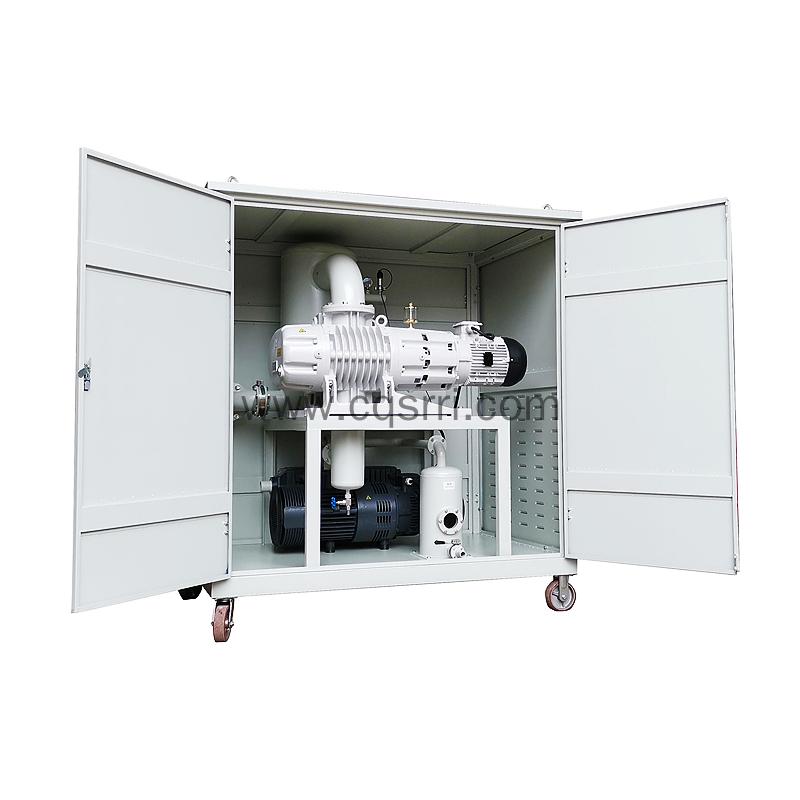

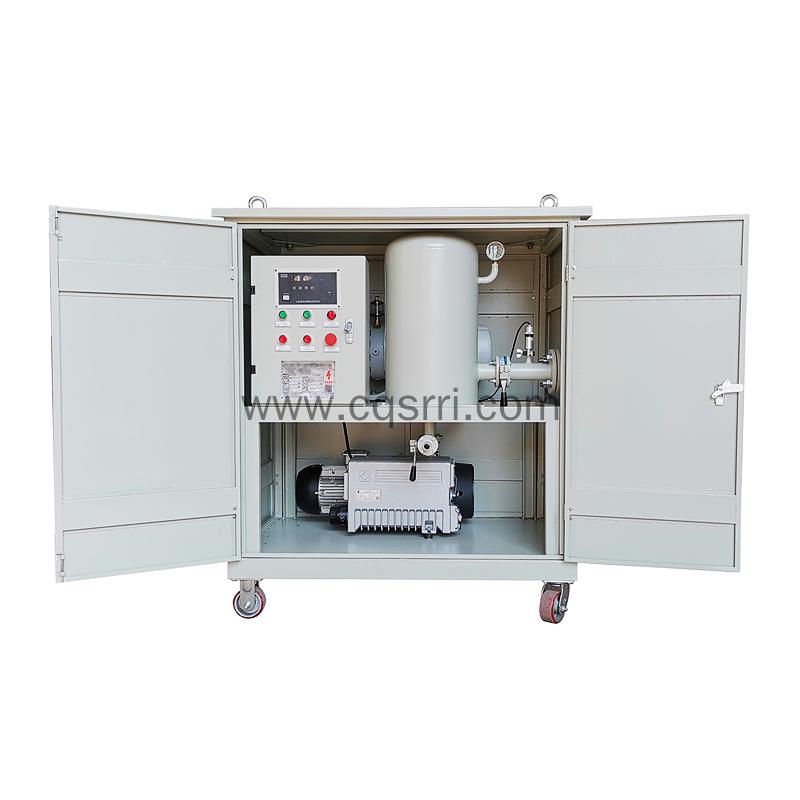

SR-VPS Vacuum Pump System

This vacuum pumping system is widely used in the process of producing vacuum condition for various equipment, used in production, installation and maintenance of many electric power equipment like electric power transformers, capacitors etc. And it is also used in the technical process of industrial production such as vacuum drying, vacuum distillation, vacuum wielding, vacuum coating etc. Its vacuum pressure can reach much lower than any other products in the same field. It can be equipped with weather-proof enclosure for outdoor use.

Parameter	Unit	Model
Parameter	Unit	VPS-70	VPS-150	VPS-300	VPS-600	VPS-1000
Rated speed	L/s	70	150	300	600	1000
Limit vacuum degree (residual pressure)	Pa	≤5-10
Cooling method		Air cooling	Air cooling	Air cooling	Water cooling	Water cooling
Total power	KW	3	6.5	10	16	30
MTBF	h	≥6000
Continuous work hours	h	≥400
Front-stage vacuum pump speed	M3/H	100	200	300	300	300
Roots pump speed	M3/H	250	500	1000	2000	4000
Air inlet pipe diameter	mm	DN50	DN65	DN80	DN100	DN200
Exhaust pipe diameter	mm	DN32	DN40	DN50	DN65	DN80
Pumping speed		2			3	3
Power supply	V/HZ	380/50(customizable)
Outer dimension	Mm	1000×650×1350	1200×800×1450	1400×1000×1600	1600×1200×1700	2000×1500×2000
Total weight	kg	260	650	960	1100	1560
