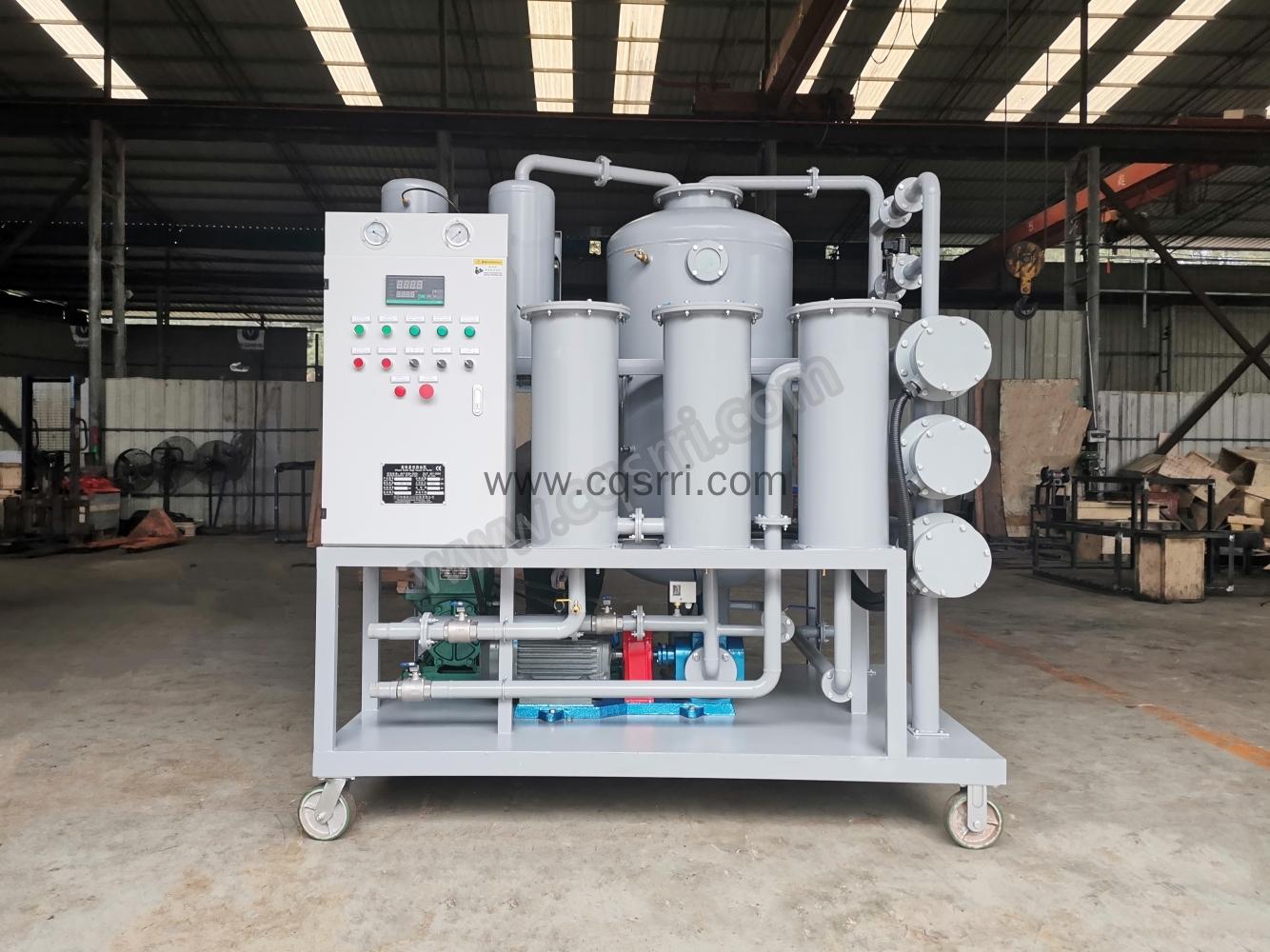

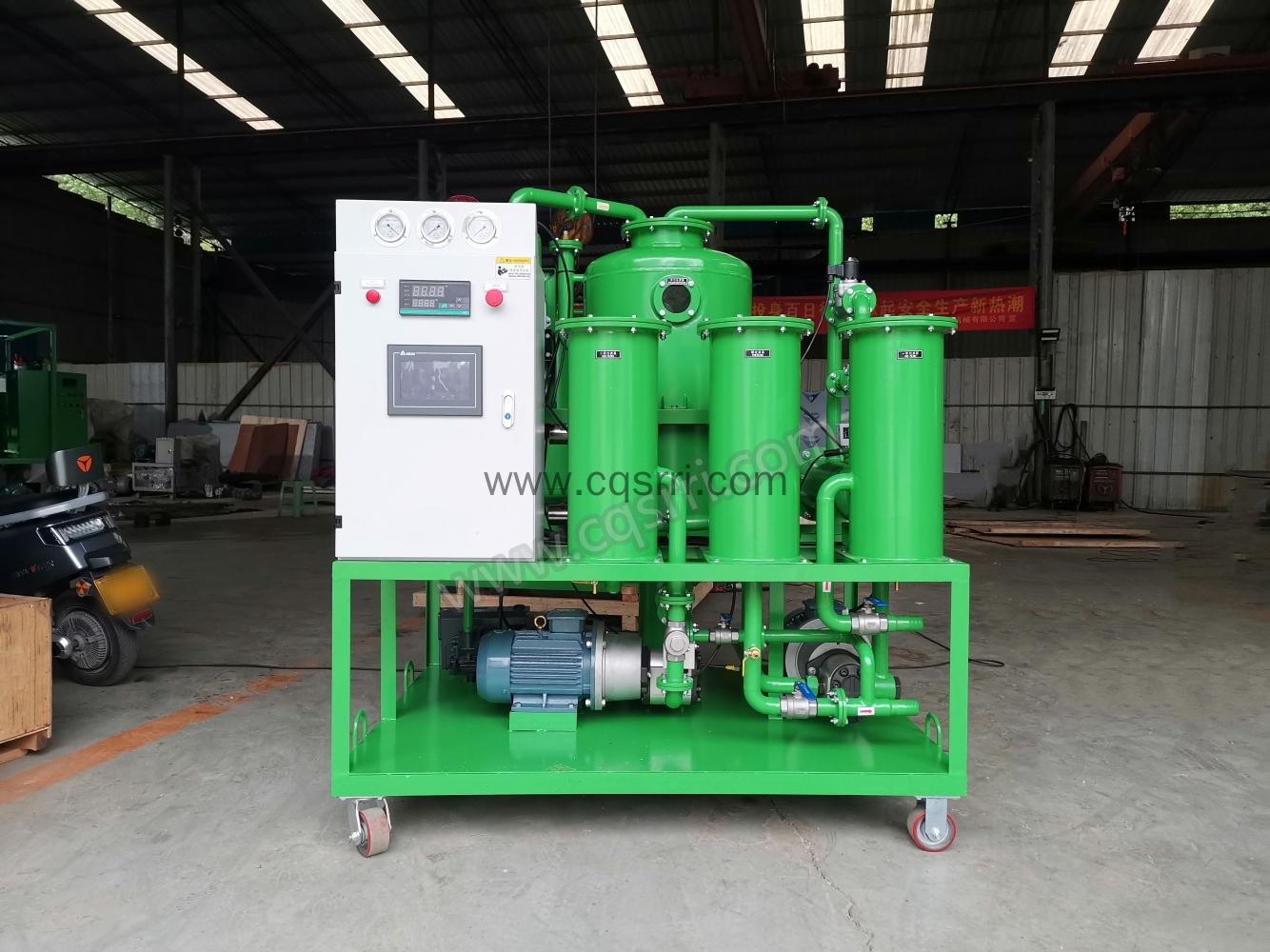

SR-LOP Vacuum Lubricating Oil Purifier

This vacuum oil purification machine is applicable to purify various kinds of lube oils such as hydraulic oil, gear oil, engine oil, cutting oil. compression oil, freezer oil, heat treatment oil, compressor oil, refrigeration oil etc in metallurgy, machinery, oil field, chemistry, mine, electric power plant, transportation, manufacturing enterprises etc. The machine can remove water content, gases, mechanical impurities and other hazardous substances from oil to improve the oil quality and recover its lubricating property and ensure normal operation of equipment.

Parameter	Unit	LOP-10	LOP-20	LOP-30	LOP-50	LOP -100	LOP -150	LOP -200	LOP -300
Flow rate	L/h	600	1200	1800	3000	6000	9000	12000	18000
Vacuum degree	Mpa	-0.06 ~- 0.095
Work pressure	Mpa	≤0.4
Temperature	℃	0~100
Power supply		3Phase, 380V, 50Hz (customizable)
Working noise	dB(A)	≤75	≤75	≤75	≤78	≤78	≤78	≤80	≤82
Heating power	KW	18	24	24	36	60	72	120	135
Total power	KW	20	26	26	39	65	78	128	147
Inlet (outlet) dia	mm	Ф25	Ф25	Ф25	Ф32	Ф42	Ф50	Ф50	Ф60
Size	mm	1500x1000 x1600	1500x1050 x1600	1500x1050 x1650	1600x1150 x1700	1750x1150 x1750	1900x1600 x1950	1950x1600 x1950	2100x1600 x2000
Weight	Kg	350	380	400	450	550	650	700	750
Oil index after treated		Moisture≤50 PPM
		Demulsification:New oil≤15min; running oil≤30min
		Impurity≤5 or1 micron
		Gases≤0.1%
		Cleanliness≤4 Grade (NAS1638)
