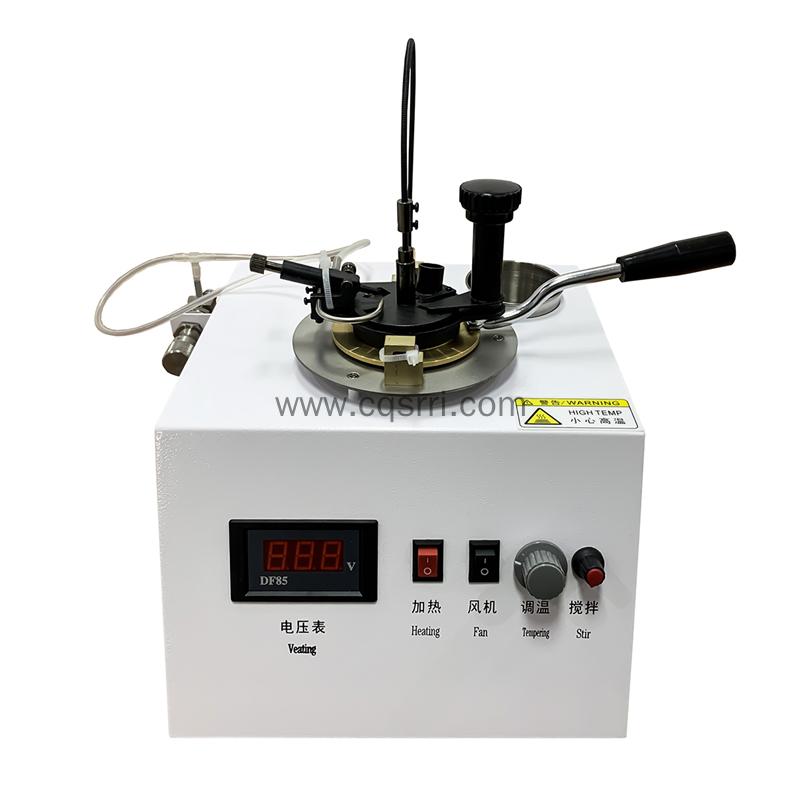

SR-93M Digital Closed Cup Flash Point Tester

SR-93M Digital Closed Cup Flash Point Tester

This device is designed as per GB/T261, ASTM D93 Test Methods for Flash Point by Closed Cup Tester. It determines the lowest temperature when the oil vapor and ambient air mixture flashes fire in contact with flame after the petroleum product heated in closed oil cup (namely the flash point of the tested petroleum product).

Details

Heating device

Furnace power: 400W; heating power continuously adjustable from0-600W

Electric stirring device

Motor and flexible axle jointing stirring; stirring vane:8×40mm

Standard oil cup

Inner diameter: 50.8mm; Depth: 56mm

Oil test capacity groove depth: 34.2mm

Oil testcapacity: about 70ml

Ignition device

Gas ignition.(or other civil use gases )

Thermometer



Internal marked mercury thermometer; complies to GB514 standard.

(1) scale:-30~170℃; scale division:1℃

(2) scale:100~300℃; scale division:1℃

Environment condition

Ambient emperature≤35℃; RH≤85%

Working power

AC 220V±10%,50Hz

Power consumption

≤650W
