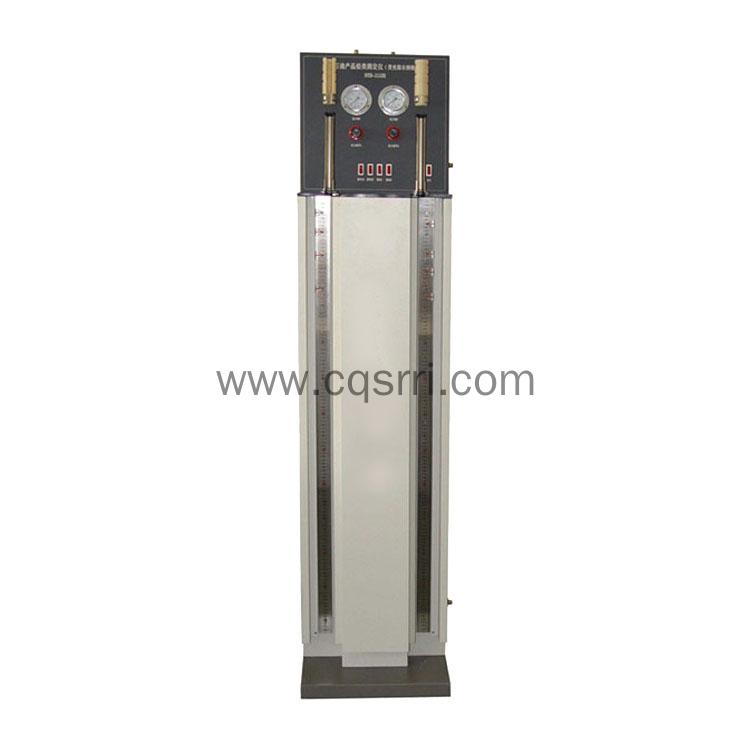

SR-1319 Liquid Petroleum Products Hydrocarbon Types Tester

This instrument is designed and manufactured in accordance with the requirements specified in GB/T 11132-2002 and ASTM D1319 Standard Test Method for Hydrocarbon Types in Liquid Petroleum Products by Fluorescent Indicator Adsorption. It is applied to display the main hydrocarbons of liquid oil products on the silicone adsorption column and calculate the volume percentage as the quality determination index of fuels such as engine fuel, aviation fuel etc. It is a special instrument for measuring the volume fraction of aromatic, olefin and saturated hydrocarbons in petroleum fractions.

1. Power supply: AC220V±5%, 50Hz

2. Regulating range of presure reducing valve: (0~400)kPa

3. Electric oscillator: independently controlled for each way

4. UV light source tube: length 1220mm, wavelength 365mm±5nm

5. Illuminating lamp: length 1220m, power 40W

6. Gas supply (provided by user): Nitrogen cylinder (or air compressor, compressed air bottle). Nitrogen cylinder or compressed air cylinder is recommended;

7. Ambient temperature: (5~35)℃

8. Relative humidity: ≤85%

9. Dimension: 350mm×400mm×1770mm (L*W*H)

10. Maximum power consumption: >600W
