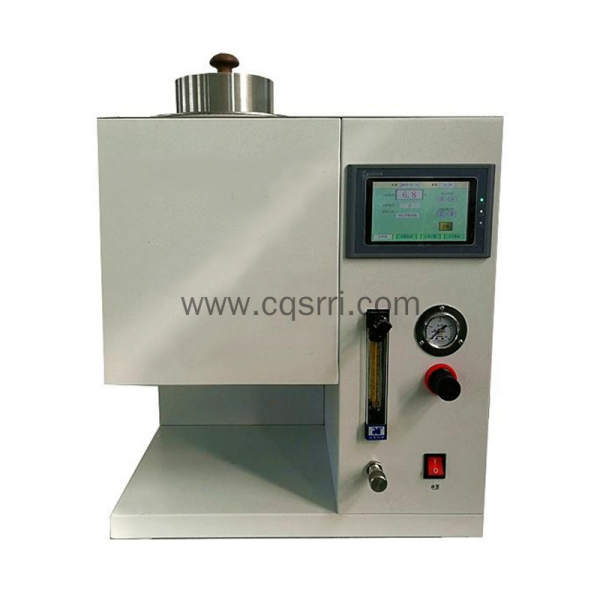

SR-4530A Automatic Carbon Residue Tester (Mirco Method)

This SR-4530A automatic carbon residue tester (micro method) is designed and manufactured as per test method GB/T 17144 Petroleum Product--Determination of carbon residue--Micro method. It can also be used to determine the amount of carbon residue formed after evaporation and pyrolysis of petroleum materials under certain conditions as per ASTM D4530, ISO10370. It has high precision and automation.

1.Power supply: AC220V±10%, 50Hz

2.Maximum power consumption: 2000W

3.Temperature control of the coking oven: 500℃±2℃

4.Temperature rising rate: 10-15℃/min

5.Dimension of coking oven: φ85mm×105mm(D*H)

6.Test positions: 12 positions

7.Flowmeter: 100 to 1000ml/min, 150ml/min and 600 ml/min automatic switching

8.Pressure reducing valve: 0.15 to 0.7MPa(input) / 0.14 MPa(output)

9.Working condition: 15～35℃, RH≤85%
