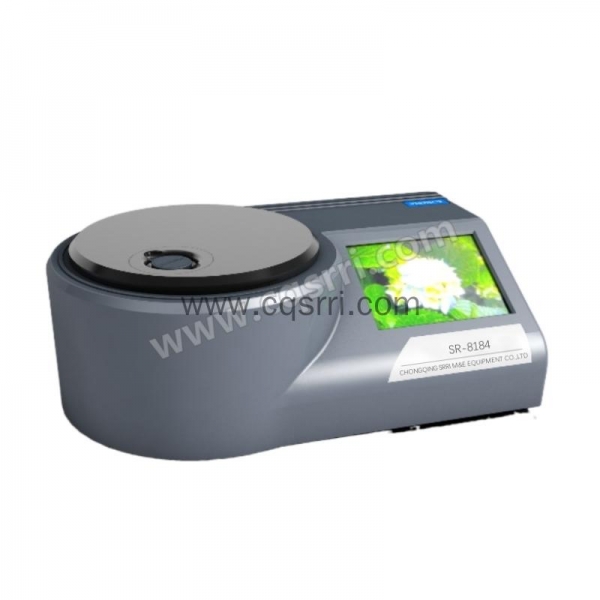

SR-8184 PQ Ferrous Wear Debris Monitor

The ferrous debris tester is a measuring device based on the principle of electromagnetic induction. A sensitive electromagnetic coil is built into the measuring device. When the oil is put into the magnetic field, the ferromagnetic wear particles in the oil will cause changes in the magnetic field strength. The size of the coil electromagnetic induction strength has a good correlation with the content of ferromagnetic wear particles. SR-8184 can conveniently and quickly detect the content of ferromagnetic metal particles in lubricating oil, hydraulic oil, and lubricating grease, thereby determining the mechanical wear condition. It meets with ASTM D8184 Standard Test Method for Ferrous Wear Debris Monitoring in In-Service Fluids Using a Particle Quantifier Instrument.

Power supply: AC220V ± 10%, 50-60Hz;
Ambient temperature: 10 ℃~30 ℃;
Display screen: LCD120 ×90;
Repeatability: ± 4PQ or ± 1% [whichever is greater];
Resolution: 1PQ;
Test time: 7s;
Measurable min value: 5PQ;
Detection range of wear particles: >1 μm ferromagnetic wear particles;
Serial port connection method: USB mother port;
Measurement range: 0~15000PQ;
Size & weight: 370*222*140mm, 3.8kg.
