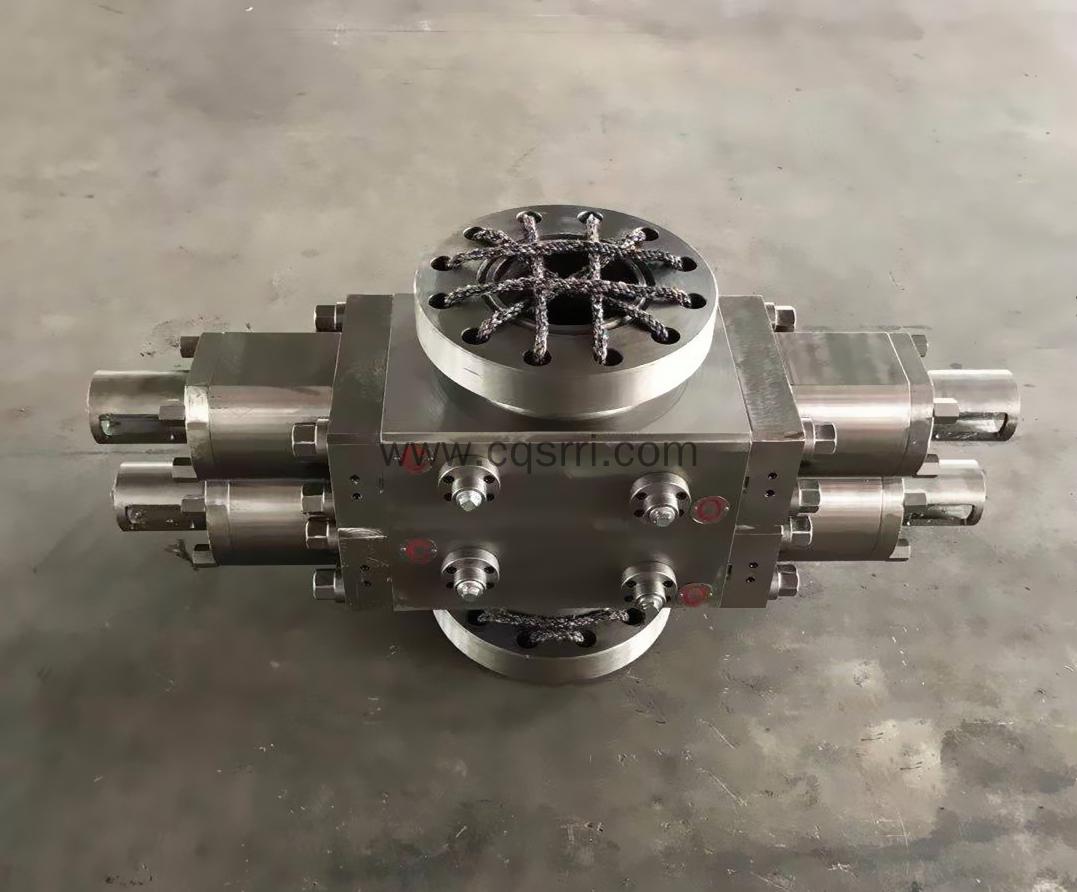

SR-BOP1821D Hydraulic Double-ram Blowout Preventer
The blowout preventer is a key part of the well control device. It is mainly used for midway testing of drilling, oil production, oil testing, and downhole operations of new well perforation. It controls wellhead pressure during operations to effectively prevent blowout accidents, achieve safe construction and avoid environmental pollution. Installing a hydraulic blowout preventer can not only shorten the time for sealing the oil pipe, but also greatly improve the work efficiency.
Details
Max working pressure: 21Mpa
Diameter: 180mm (7 1/16”)
Outer diameter of upper and lower connecting flange: Ø380mm
Hydraulic cylinder diameter: Ø120mm
Pitch diameter of backing ring groove: Ø211.14mm
Backing ring number: R45
Bolt: 12-M30×3
Rotation numbers of the locking shaft: 14
Equipped ram assembly: 27/8 ram, fully enclosed ram (will equip according to customer’s need)
Dimensions (length×width×height): 1220×380×565mm
Weight: 610Kg
Diameter: 180mm (7 1/16”)
Outer diameter of upper and lower connecting flange: Ø380mm
Hydraulic cylinder diameter: Ø120mm
Pitch diameter of backing ring groove: Ø211.14mm
Backing ring number: R45
Bolt: 12-M30×3
Rotation numbers of the locking shaft: 14
Equipped ram assembly: 27/8 ram, fully enclosed ram (will equip according to customer’s need)
Dimensions (length×width×height): 1220×380×565mm
Weight: 610Kg
