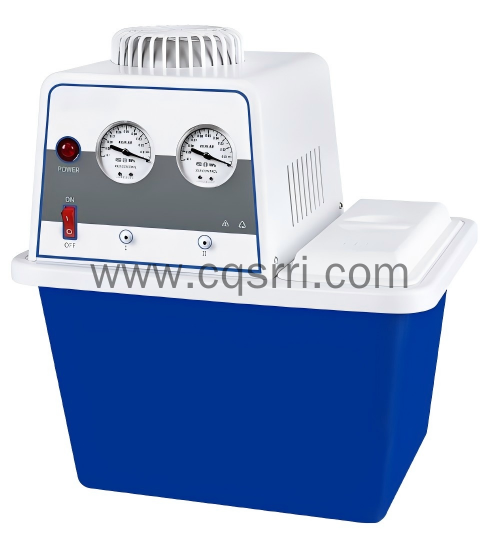

SR-CVP Circulating Water Vacuum Pump

This vacuum pump is multi-purpose vacuum pump designed using circulating water as the working fluid and the principle of generating negative pressure through jet flow. It provides vacuum conditions for chemical laboratories and can also supply circulating cooling water to reaction apparatus. It is widely used in operations such as evaporation, distillation, crystallization, depressurization, and sublimation, making it an ideal equipment for laboratories in universities, pharmaceutical and chemical industries, food processing, etc.

Model	SR-CVP-D(III) ABSanticorrosion	SR-CVP-D(III) PTFE	SR-CVP-D(III) Stainless steel	SR-CVP-D(III) 4 gauges & 4 heads	SR-CVP-S(III) ABSreverse water suction	SR-CVP-95 vertical 5 heads
Flow rate	60L/min				90L/min	80L/min
Lift	8m					12m
Max vacuum	0.098MPa
Single-head pumping	10L/min
Water tank volume	15L					35L
Circulating water function	✔			×	✔	×
Display	Pressure gauge×2			Pressure gauge×4	Pressure gauge×2	Pressure gauge×1
Suction head number	2			4	2	5
Suction head & check valve material	Copper + PTFE, pp anti-corrosion	PTFE	Copper + PTFE, pp anti-corrosion	Copper	Copper + PTFE, pp anti-corrosion	Copper
Pump head material	PVC		304SS	PVC
Power	180W			370W	180W	370W
Power supply	AC 220V 50Hz
Net weight	9.5KG		10KG	13KG	10KG	30KG
Size(LxWxH mm)	400×280×420					440×340×840
